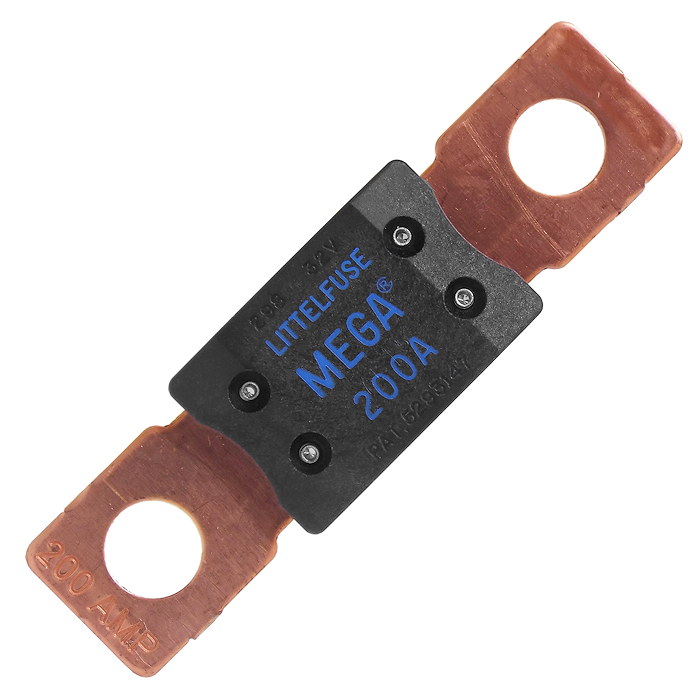

0-376-20 Blue MEGA Type Fuse 200A

£5.72 Excl. VAT

RRP ~~£6.70~~ Excl. VAT

(£6.86 Inc. VAT)

Initial Savings

£0.98

Earn 5 Loyalty Points

Available

Model

0-376-20

Bar Code

5056119110470

Part Number

0-376-20

Brand

Durite

Colour

Blue

Voltage

12V/24V DC

Amperage

200A

Material

Copper/Polyphthalamide (PPA)

Intrastat HS Code 8536109090

Ship Weight

20 g

Durite 12V-24Vdc OEM quality Blue coloured MEGA type link fuses. The 200 Amps heavy-duty fuse is used for circuit and surge protection when high loads and heavy gauge automotive cables are used.

Colour-coded: Blue.
Continuous Rating: 200A.
Blow Rating: 400A.
Interrupting Rating: 2000A at 32Vdc.
Voltage Rating: 12 and 24 Volts DC (32 Volts DC Maximum).
Operating Temperature Range: -40 to 125℃.
Mounting Torque: 12-18Nm M8.
Pack Quantity: 1 piece.

Dimensions

Length: 68.50mm.
Body Width: 19.00mm.
M8 Hole Centres: 50.8mm.

Associated Parts

0-376-85 MEGA fuse holder.
0-376-86 compact MEGA fuse holder.

About the 200 Amps MEGA Type Fuses

The Durite 0-376-20 Blue bolt-down MEGA type fuse is a heavy-duty 200 Amps fuse designed to provide reliable circuit protection when high loads and heavy gauge automotive cables are used. This fuse is rated for 12 to 24 Volts DC with an interrupting rating of 2000A at 32Vdc, a continuous rating of 200A and a blow rating of 400A. This fuse is robust and reliable, perfect for battery and alternator protection for road vehicles, agricultural, material handling and industrial equipment. Durite is a trusted brand in automotive fuses, and the 0-376-20 Blue MEGA type fuse will provide you with all the protection you need.

The 200 Amps continuous rating gives high current circuit protection on auto electric equipment close to the battery source, including heavy gauge automotive cables and vehicle wiring on a circuit that is passing current (always on). The 400 Amps blow rating is for intermittent circuits where the copper fuse requires to heat up from cold before blowing.

Specifications

Type

MEGA type fuse

Voltage

12-24 Volts DC (32 Volts DC Maximum)

Voltage Drop

Less than 92mV

Interrupting Rating

2000 Amps at 32 Volts DC

Colour Code

Blue

Current Rating

200 Amps - Continuous

Blow Rating (from cold)

400 Amps - Intermittent

Body Material

Plastic

Termination

Zinc Alloy

Operating Temperature

-40 to +125℃ (current rating decreases with increased temperature to 92% at 120℃)

Weight

12.5g
