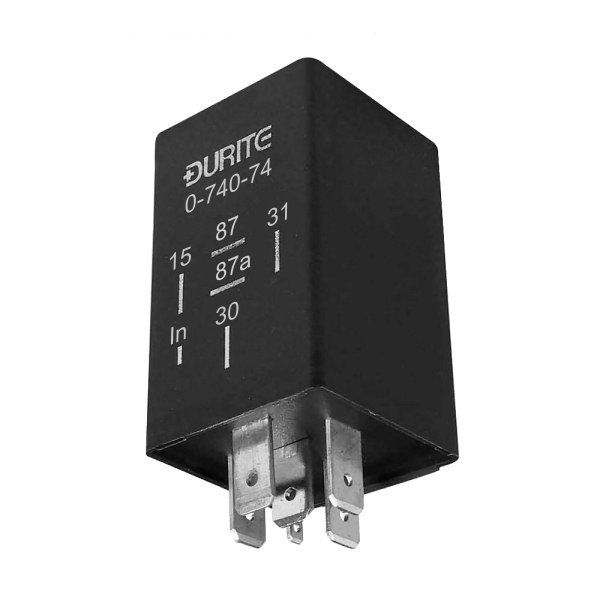

0-740-74 Durite 12V Pre-programmed Timer Off Relay 6 Second Delay

 Durite 12Vdc 6 seconds pre-programmed timer off relays.

• Individually programmed 'PIC' controlled timers.
• Timer off function to give a time response before circuit switching.
• Input triggers timed output, unless the input is removed.
• Important: Please allow for an extra day on delivery due to programming requirements.

Specification

• Delay: 6 seconds timer off function.
• Voltage: 12 Volts application with a 9V to 16V operation range.
• Current: 20A-25A.
• Temperature: minus 40 to 80℃.
• Supplied with metal mounting bracket.
• Protection: IP54.

Dimensions

• Width: 30mm.
• Depth: 30mm.
• Height: 40mm.

Additional Information

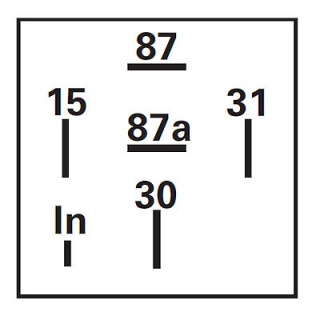

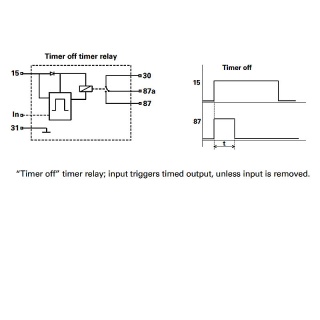

• The input trigger in the diagram is via pin 15. Terminal 15 needs a constant supply during the time required. The timer will begin once terminal 15 is live and if removed during the timed output, the output feed will end until terminal 15 is live again and the time will restart from the beginning.
• 'In' is not used in this programmed version.

Associated Products

• 0-729-00 relay mounting socket.

Important LDSR Information

 These relays are held on stock as a core (not programmed) unit and the programming process is not reversible. Each and every unit requires pre-programming and bench testing 'To Order' to ensure the timer function is calibrated correctly, and that every unit works prior to dispatching. This means that the 'Programmed to Order' relays may not be refundable if an order for the wrong specification is made by mistake. This measure is inline with Long Distance Selling Regulations (LDSR), and if you are not reordering and are unsure of the function of the relay, please contact ourselves or Durite's technical helpline to discuss your requirements.
