SW60-209 Albright 24V DC Single-acting Miniature Solenoid Continuous 80A

SW60-209 Albright 24V DC Single-acting Miniature Solenoid Continuous 80A
SW60-209 Albright 24V DC Single-acting Miniature Solenoid Continuous 80A
SW60-209 Albright 24V DC Single-acting Miniature Solenoid Continuous 80A
£20.69 Excl. VAT
(£24.83 Inc. VAT)
Earn 20 Loyalty Points

Pre-order
Despatch: 8 to 10 Weeks
Model
SW60-209
Bar Code
DNA
Part Number
SW60-209
Brand
Albright
Colour
Black
Voltage
24V DC
Amperage
80A
Material
Copper/Silver/Bakelite
Coil type
Continuous
Ship Weight
190 g


 Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of approximately 8 to 10 weeks despatch.

  • Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
  • Request "Ship all available" in the order comments section if you order more units than are available.

 Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.


 Albright SW60-209 series 24Vdc miniature single-acting solenoid contactor, continuous.

  • Albright SW60 series contactors have been designed for a compact DC contactor application and are used for switching or reversing small traction motors, hydraulic power packs, small electric winch motors, etc.
  • All the contactors are manufactured to a very high standard and employ the best quality materials: phenolic contact housings, Silver-alloy contacts and class H (180℃) winding wire for the coils.
  • Repair kit: not available on this unit.

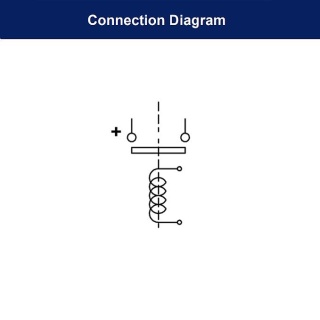

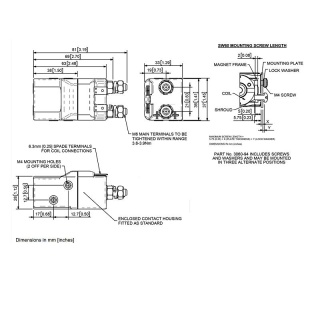

Dimensions

  • Height, including terminals and coil base cap: 81.4mm.
  • Coil width: 35.9mm.
  • Cap width: 35.9mm.
  • Depth: 32.8mm.

Associated Products

  • 3060-94 Standard "U" shaped mounting bracket.
  • 3060-340 Standard "DIN" rail mounting bracket.
  • 3060-382A Curved mounting bracket.
  • 2070-776 "U" shaped mounting bracket with extensions.

About Continuous (CO.) SW60 Solenoids

 Continuous contactors, by design, are predominantly used for drive functions on vehicles; they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

 The SW60 features single pole double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW60 has M6 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or steel mounting brackets (supplied as separate items). Mounting can be on the side or base of the contactor.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type
NO - SP - ST
Voltage
24V D.C.
Coil Type
Continuous
Amps
80A
Coil Resistance (Ohms)
100
Pull In Voltage (V)
16.0 Max.
Drop Out Voltage (V)
6.0 Max.
Coil Power Dissipation (W)
5.76
Typical Pull-In Time
15ms
Typical Voltage Drop Per Pole
Across New Contacts At 80A
< 40mV
Operating Ambient Temperature
-40 to +60℃
Guideline Weight
210g
Application
Uninterrupted
Thermal Current Rating
80A
Intermittent Current Rating

30% Duty
145A
40% Duty
125A
50% Duty
115A
60% Duty
105A
70% Duty
95A




Delivery

UK Mainland Postage

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.

 We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use FedEx, UPS, Parcel Force, and other major courier services for larger and more valuable consignments.
