Durite 175A Red High Current Battery Connector | Re: 0-432-75

£10.98 Excl. VAT

RRP ~~£12.86~~ Excl. VAT

(£13.18 Inc. VAT)

Initial Savings

£1.88

Earn 10 Loyalty Points

Select Option

Available

Model

0-432-75

Bar Code

5056119112740

Part Number

0-432-75

Brand

Durite

Colour

Red

Voltage

600V DC

Amperage

175A

Material

Polycarbonate/Copper

Intrastat HS Code 8536901000

Ship Weight

118 g

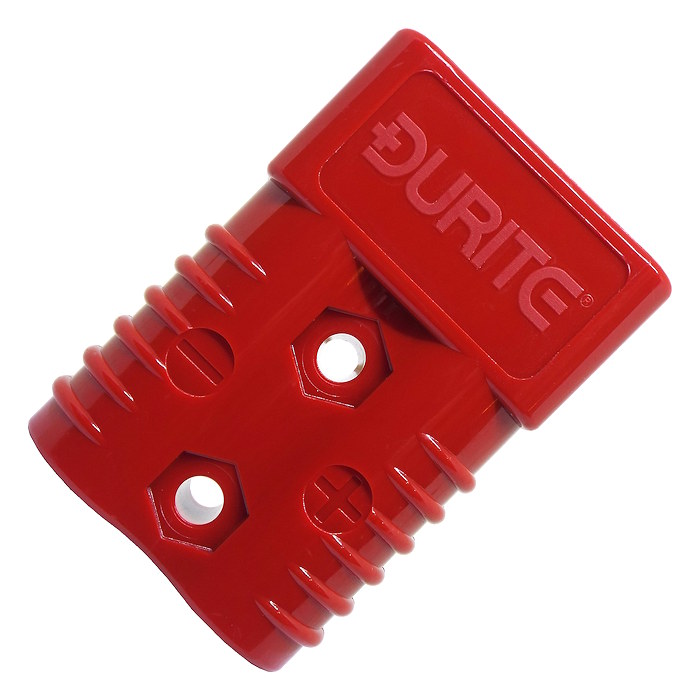

Durite 2-way 175A red battery cable connector for medium to heavy-duty automotive cables and vehicle wiring.

175 Amps high current battery connector.
The red-coloured polycarbonate housing is generally used to identify a 24VDC supply.
Silver-plated solid copper terminals.
Pack Quantity: Single, bulk and aftermarket.

Additional Information

The connectors are ‘genderless’ and are connected to each other by inverting one connector.
They are colour-keyed and cannot be mixed or interchanged with other colours.

Approximate Dimensions

Length: 80mm
Width (across fins): 55.5mm
Height: 25.5mm

About The Red 175 Amps Battery Connector

Used as a heavy-duty battery cable connector, the Durite 175A red connector, when reversed, clips into another red connector of the same part number to create a secure connect and disconnect plug for chargers. Due to the sturdy and reliable terminal and housing construction, the unit will stand up to rigorous daily use.

Typically used as a battery charger connect and battery disconnect plug on electric vehicles, the unit can also be used as a jump lead extension, usually found mounted into a breakdown vehicle front and rear to allow forward or rear jump-starting without accessing the hood or battery station.

A common question regarding this connector is: Does the unit require a different partner connector? The answer is no. To create the connection, you would use another connector of the same part number and rotate it 180° (upside down). Positive to Positive and Negative to Negative. You would require two units for a simple battery cable split connector or three if a connection to a charger is needed.

Specifications

Type

Power Connector

DC Rating At 600VDC

175 Amps

Colour

Red

Housing Material

Polycarbonate

Contact Material

Silver-plated Copper

Spring

Stainless Steel

Operating Temperature

-20°C to +105°C

Typical Wire/Cable Size

AWG 2 (35.00mm²)

Copper Wire Min/Max

AWG 10 (5.2mm²) to AWG 1/0 (53.4mm²)

Weight

115g
