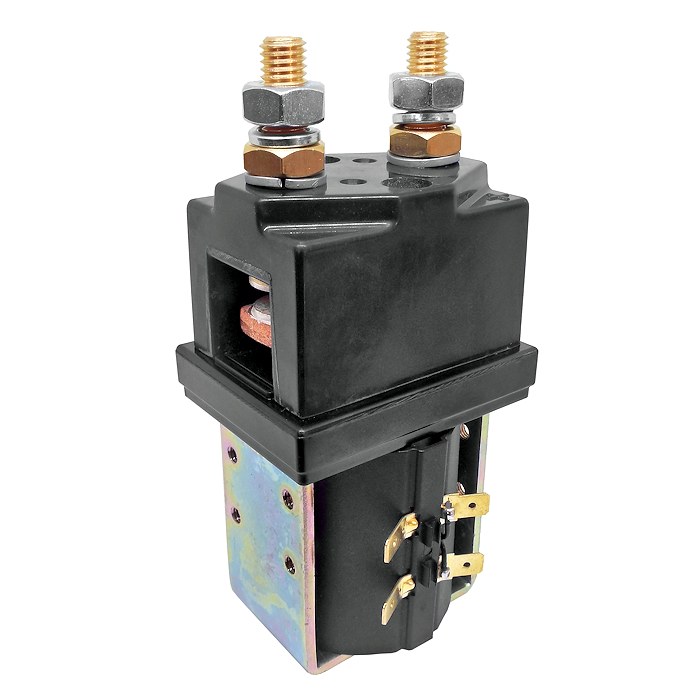

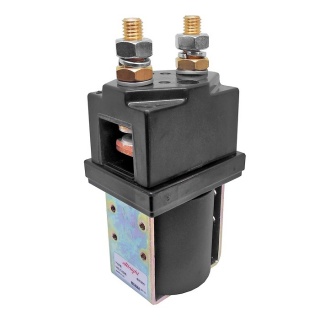

SW200-27 Albright Single-acting Solenoid Contactor 96V Continuous

£120.89 Excl. VAT

(£145.07 Inc. VAT)

Earn 120 Loyalty Points

4 in stock

Model

SW200-27

Bar Code

DNA

Part Number

SW200-27

Brand

Albright

Colour

Black

Voltage

96V DC

Amperage

250A

Material

Copper/Silver/Bakelite

Coil type

Continuous

Intrastat HS Code 8536490000

Ship Weight

1.28 kg

Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of approximately 8 to 10 weeks despatch.

Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
Request "Ship all available" in the order comments section if you order more units than are available.

Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

Albright SW200-27 96Vdc 250 Amps single-acting contactor with magnetic blowouts, continuous.

The SW200 series of contactors has been designed for direct current loads, particularly motors used on larger electric vehicles such as industrial trucks, airport tractors, etc. They have double-breaking contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
The contactors are compact in size and are fully serviceable, with a range of spare parts available.
This product has the magnetic blowout feature as standard.

Associated products

2155-99 Contact repair kit
2155-202 Auxiliary switch kit
2155-53CA 96Vdc continuous coil

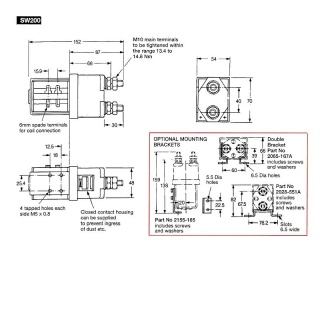

Dimensions

Height, including terminals and coil base cap: 153mm.
Coil width: 58.5mm.
Cap width: 67mm.
Cap depth: 48mm.

Magnetic Blowouts

The contactors are double-break and fitted with magnetic blowouts across both contact gaps, as standard. These enable high currents to be ruptured very quickly so that arcing time is reduced to a minimum. The fitting of blowouts makes the contacts polarity sensitive, and the positive markings on the top cover of the contactor must be observed.

About Continuous (CO.) SW200 Solenoids

Continuous contactors, by design, are predominantly used for drive functions on vehicles; they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

The SW200 has been designed for direct current loads, including motors used on electric vehicles such as industrial trucks. Developed for both interrupted and uninterrupted loads, the SW200 is suitable for switching Resistive, Capacitive and Inductive loads.

The SW200 features single-pole, single-throw, double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW200 has M10 stud main terminals and 6.3mm spade coil connections. It can be mounted via M5 tapped holes or steel mounting brackets (supplied as separate items). Mounting can be horizontal or vertical. When vertical the M10 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).

Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

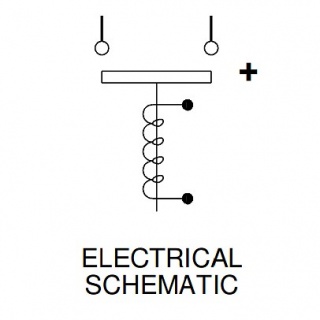

Device Type	NO - SP - ST
Voltage	96V D.C.
Coil Type	Continuous
Amps	250 Amps
Coil Resistance (Ohms)	510
Pull-In Voltage (V)	65.0 Max.
Drop Out Voltage (V)	24.0 Max.
Coil Power Dissipation (W)	18.07
Typical Pull-In Time	40ms
Typical Voltage Drop Per Pole Across New Contacts At 100A	40mV
Operating Ambient Temperature	-40 to +60℃
Weight	1.35Kg
Application	Uninterrupted
Thermal Current Rating	250A
Intermittent Current Rating:
30% Duty	450A
40% Duty	390A
50% Duty	360A
60% Duty	320A
70% Duty	300A
