RU280-5073P Albright Single-acting 48V 350A Contactor - Intermittent IP66

£77.16 Excl. VAT

(£92.59 Inc. VAT)

Earn 77 Loyalty Points

Pre-order
Despatch: 8 to 10 Weeks

Model

RU280-5073P

Bar Code

DNA

Part Number

RU280-5073P

Brand

Albright

Colour

Black

Voltage

48V DC

Amperage

350A

Material

Copper/Silver/Bakelite/Steel

Coil type

Intermittent

Intrastat HS Code 8536490000

Ship Weight

750 g

Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of approximately 8 to 10 weeks despatch.

Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
Request "Ship all available" in the order comments section if you order more units than are available.

Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

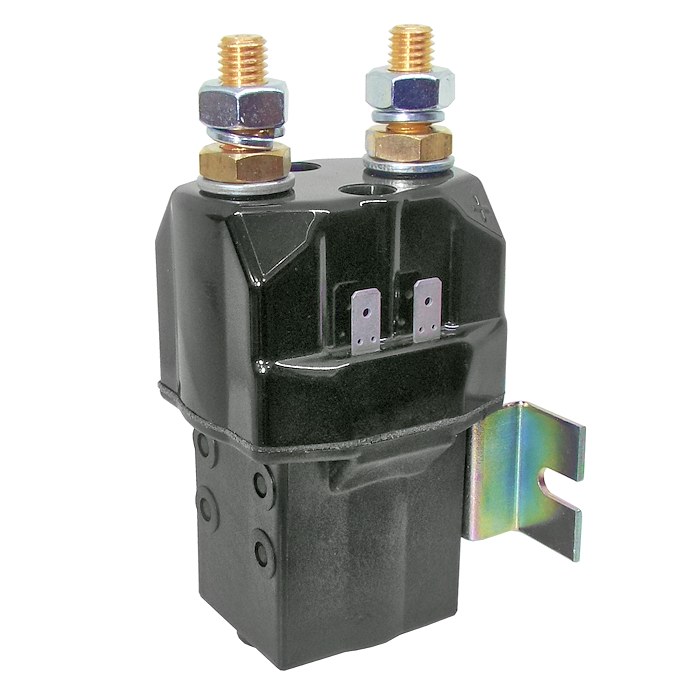

Albright RU280-5073P single-acting 48VDC 350 Amps solenoid contactor, protected to IP66, intermittent.

The Reduced Silver series are suitable for applications where infrequent switching is specified. In such applications the degradation of the tip is minimal and therefore a higher volume of silver is unnecessary.
Developed for Uninterrupted current applications the RU280P is typically used in line contactors or Power Distribution Systems.

Dimensions

Height including terminals and coil base cap: 132mm.
Coil width: 45mm.
Cap width: 67mm.
Cap depth: 47mm.

About Intermittent (INT.) RU280P Solenoids

Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

The contactors have double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The RU280P offers greater environmental protection (IP66) and is easy to install, with M5 tapped holes in the switch frame together with a range of mounting brackets available. To ensure IP66, mounting holes are not accessible on the opposite side of the mounting bracket. Mounting can be vertical or horizontal, when vertical the M10 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).

Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type	SPST NO
Voltage	48V D.C.
Coil Type	Intermittent
Amps	350 Amps
Coil Resistance (Ohms)	73
Pull-In Voltage (V)	29.0 Maximum
Drop Out Voltage (V)	12.0 Maximum
Coil Power Dissipation (W)	31.56
Typical Pull-In Time	30ms
Typical Voltage Drop Per Pole Across New Contacts At 100A	40mV
Operating Ambient Temperature	-40 to +60℃
Protection	IP66
Weight	755g
Application	Uninterrupted
Thermal Current Rating	350A
Intermittent Current Rating:
30% Duty	660A
40% Duty	555A
50% Duty	495A
60% Duty	450A
70% Duty	420A
