Durite 25A White MICRO2 Automotive Blade Fuse | Re: 0-376-82

£5.21 Excl. VAT

RRP ~~£6.10~~ Excl. VAT

(£6.25 Inc. VAT)

Initial Savings

£0.89

Earn 5 Loyalty Points

Select Option

Available

Model

0-376-82

Bar Code

5056119140286

Part Number

0-376-82

Brand

Durite

Colour

White

Voltage

12V/24V DC

Amperage

25A

Material

Zinc Alloy/Silver/PA66

Intrastat HS Code 8536109090

Ship Weight

11 g

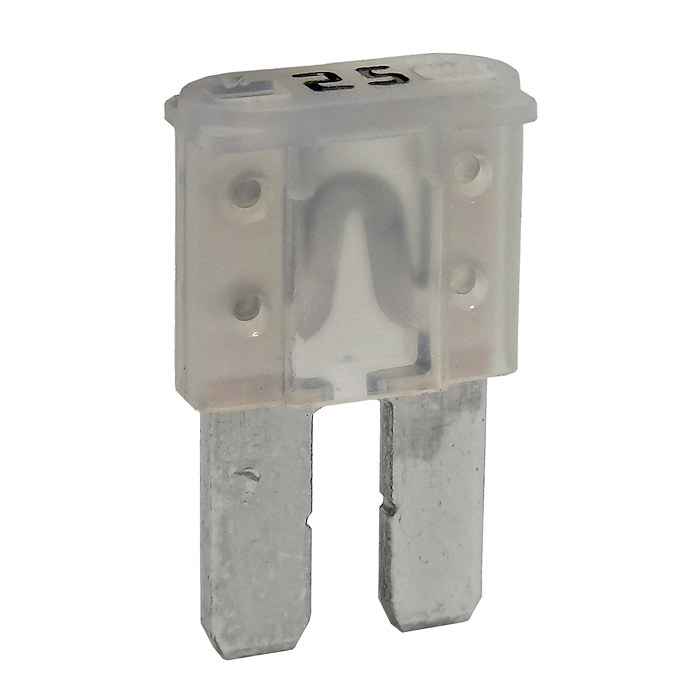

Durite MICRO2 Littelfuse 327 series micro spade fuses with a single fuse element.

MICRO2 2 x blade fuse with 1 fuse element.
Colour Coded: White
Continuous Rating: 25A
Blow Rating: 50A
Pack quantity: 10 and 50 pieces.

Dimensions

Width: 9.1mm Maximum.
Length: 15.5mm.
Thickness: 3.8mm.

About The MICRO2 Blade Fuse

Durite Littelfuse 327 MICRO2 fuse has a single fuse element and is the new standard for vehicle circuit protection. The sub-miniature design meets the need for more circuits to be protected while utilizing less space. The micro fuse has the ability to cope with high temperatures in adverse environments, making the MICRO2 fuse a recommended choice for protection.

The smaller and compact type of fuse from the Durite automotive blade fuse family, the white coloured MICRO2 blade fuse offers a 25 Amps continuous circuit load protection and a 50 Amps blow rating. At Arc Components Ltd we offer the 327 Series MICRO2 blade fuses in many different amperages, ranging from 5A to 30A, with a 32VDC rating.

Fuse Ratings

Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent and therefore the fuse is required to heat up before blowing.

Specifications

Type

Single element fuse

Colour Code

White

Continuous Rating

25 Amps

Blow Rating

50 Amps

Voltage Rating

32VDC

Interrupting Ratings

1000A at 32VDC

Component Temperature Range

-40˚C to +125˚C

System Temperature Range

-40°C to +105°C 105°C is a typical system-level temperature requirement.

Terminals

Silver (Ag) plated zinc alloy, 2.8mm

Housing Material

PA66

Conforms to

SAE 2741 and ISO 8820-3 in reference to electrical, mechanical and environmental performance requirements.
