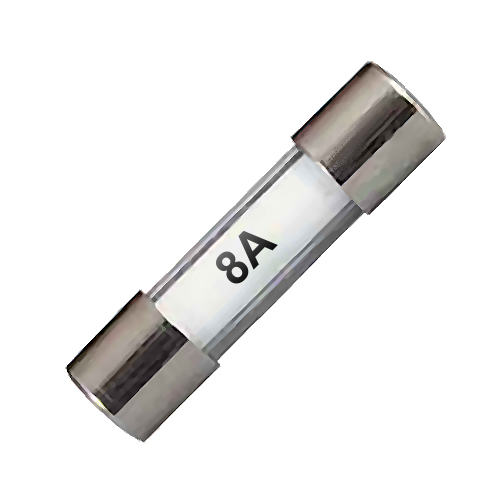

Durite 20mm 8A Radio Glass Fuses | Re: 0-373-08

Durite 20mm 8A Radio Glass Fuses | Re: 0-373-08
£2.31 Excl. VAT
RRP £2.70 Excl. VAT
(£2.77 Inc. VAT)
Initial Savings
£0.39
Earn 2 Loyalty Points

Available
Model
0-373-08
Bar Code
5056119109863
Part Number
0-373-08
Brand
Durite
Colour
Clear
Voltage
12V/24V DC
Amperage
8A
Material
Glass/Nickel/Brass
 Intrastat HS Code  8536109090
Ship Weight
10 g


 Durite 20mm standard 8 Amps radio glass fuse for automotive electrical surge protection.

  • Glass-encased fuse element with nickel-plated brass end caps.
  • Continuous Rating: 8A.
  • Blow Rating: 16A.
  • Always check your equipment's manual before replacing fuses to determine which fuses you require.
  • Pack Quantity: 10 pieces.

Dimensions

  • Total Length: 20.0mm
  • Total Diameter: 5.0mm

About The 8A 20mm Glass Radio Fuse

 The Durite classic style glass fuse with 5.0mm diameter nickel-plated brass caps is historically used for surge protection, usually found mounted on vehicle PCBs and when used inline on automotive cables and vehicle wiring.

 The ratings for 8A continuous use are based on a circuit constant load being always-on, and the 16A blow rating is based on the circuit load being intermittent.

Fuse Ratings

 Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent, and therefore the fuse is required to heat up before blowing.


Delivery

UK Mainland Postage

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.

 We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use FedEx, UPS, Parcel Force, and other major courier services for larger and more valuable consignments.


International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.

Also Bought

Durite 20mm 1A Radio Glass Fuses | Re: 0-373-01
Durite 20mm 1A Radio Glass Fuses | Re: 0-373-01

Durite standard 20mm radio glass fuse with nickel-plated brass caps. Rated 1A continuous use, with a 2A blow rating. Diameter: 5.0mm.

Re: 0-373-01
£2.63
Excl VAT
Available
Durite 20mm 2A Radio Glass Fuses | Re: 0-373-02
Durite 20mm 2A Radio Glass Fuses | Re: 0-373-02

Durite standard 20mm radio glass fuse with nickel-plated brass caps. Rated 2A continuous use, with a 4A blow rating. Diameter: 5.0mm.

Re: 0-373-02
£2.63
Excl VAT
Available

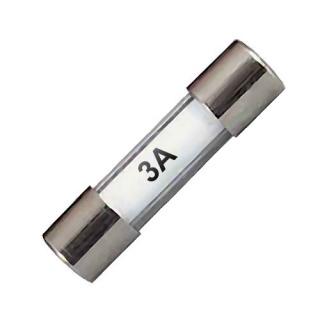

Durite 20mm 3A Radio Glass Fuses | Re: 0-373-03
