Durite 5.75A Black and Red standard twin-core automotive cables in a flat moulded sheath for a vehicle wiring loom. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.
- .65mm² (19AWG) Black and Red.
- 5.75 Amps twin-core automotive cables and vehicle wiring.
- 9 copper strands at 0.30mm.
- Outside measurement: 6.1mm x 3.8mm.
- Manufactured to BS6862-1:1971.
- Roll length: 30m or 100m.
About the 0-951-00 0.65mm² Black and Red PVC Electric Cables
Arc Components Limited presents the 0-951-00 and 3-951-00, Durite's light-duty 5.75A Black Negative (-) and Red Positive (+) twin-core automotive cables, ideal for your vehicle's connection to electrical equipment with a low load requirement.

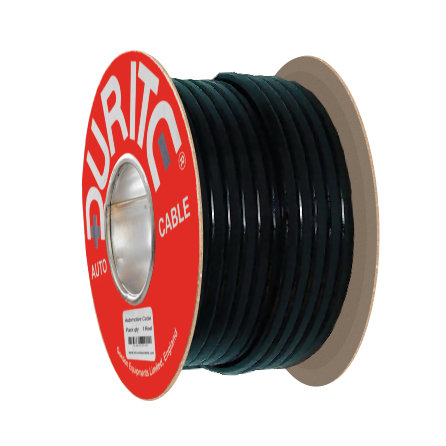

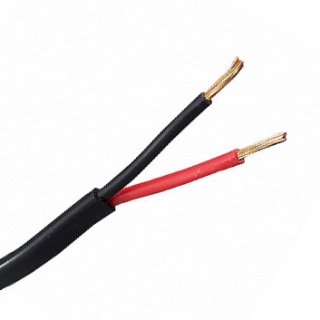

This high-quality PVC flat sheathed, copper-cored electrical wire is supplied on a 30m or 100m cardboard reel, perfect for storage in your van or workshop ready-use wiring racks. It is 0.65mm² (19 AWG) and features two 9 strands of 0.30mm separate copper wires bound together in a PVC sleeve and then moulded into a flat PVC sheath, with an outside measurement of 6.1mm x 3.8mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS6862-1:1971. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 5.75 Amps per cable.
The Durite 0-951-00 and 3-951-00 twin cables are commonly used as conductor wires on low-amperage 12V-24V electrical equipment.
Specifications
| Type | Twin-core standard automotive wiring |
| Current Rating | 5.75 Amps |
| Insulation Colour | Red and Black |
| Wire | 9/0.30mm copper |
| Cross-section | 0.65mm² (19 AWG) |
| Voltage | For 12 and 24 Volts DC systems (100 Volts DC Max.) |
| Resistance | 29.4mΩ/m at 20℃ |
| Insulation | Hard-grade PVC offers good resistance to abrasion and cut-through. |

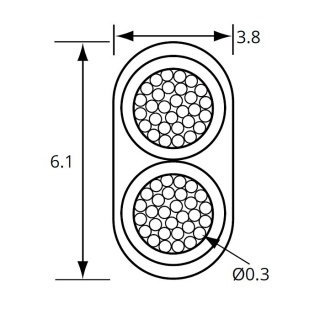

| Overall Outside Measurement | 6.1mm x 3.8mm |
| Temperature | Minus 30 to +70℃ |
| Length of Cable | 30 and 100 Metre roll options |
| Approvals | BS 6862-1:1971 |
| Weight | 1.22Kg/4Kg |
