0-943-05 50m x 2.00mm² Red 17.5A Auto Single-core Cable

£29.21 Excl. VAT

RRP ~~£34.22~~ Excl. VAT

(£35.05 Inc. VAT)

Initial Savings

£5.01

Earn 29 Loyalty Points

Available

Model

0-943-05

Bar Code

5056119133011

Part Number

0-943-05

Brand

Durite

Colour

Red

Voltage

12V/24V DC

Amperage

17.5A

Material

Copper/PVC

Intrastat HS Code 8544499390

Ship Weight

1.40 kg

Durite 17.5A Red standard automotive cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.

2mm² (14AWG) Red.
17.5 Amps single-core automotive cable and vehicle wiring.

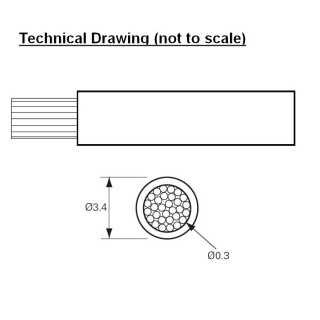

28 copper strands at 0.30mm.
Outside diameter: 3.4mm.
Manufactured to BS6862-1:1971.
Roll length: 50m.

About the 0-943-05 2.00mm² Red PVC Electric Cable

Arc Components Limited presents the 0-943-05, Durite's light-duty 17.5A Red automotive cable, ideal for your vehicle's connection to electrical equipment with a low load requirement.
This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 50m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 2.0mm² (14 AWG) and features 28 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 3.4mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS6862-1:1971. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 17.5 Amps.

The Durite 0-943-05 is commonly used as a Positive (+) conductor wire on low-amperage 12V-24V electrical equipment and wiring looms.

Specifications

Type

Single-core standard automotive wiring

Current Rating

17.5 Amps

Insulation Colour

Red

Wire

28/0.30mm copper

Cross-section

2.00mm² (14 AWG)

Voltage

For 12 and 24 Volts DC systems (100 Volts DC Max.)

Resistance

9.4mΩ/m at 20℃

Insulation

Hard-grade PVC offers good resistance to abrasion and cut-through.

Overall Diameter

3.4mm

Temperature

Minus 30 to +70 degrees C

Length of Cable

50 Metres

Approvals

BS 6862-1:1971

Weight

1.4Kg
