0-940-05 30m x 10.00mm² Red 70A Single-core Thin Wall Auto Electrical Cable

£76.98 Excl. VAT

RRP ~~£90.18~~ Excl. VAT

(£92.38 Inc. VAT)

Initial Savings

£13.20

Earn 76 Loyalty Points

Available

Model

0-940-05

Bar Code

5056119132342

Part Number

0-940-05

Brand

Durite

Colour

Red

Voltage

12V/24V/36V/48V DC

Amperage

70A

Material

Copper/PVC

Intrastat HS Code 8544499390

Ship Weight

3.20 kg

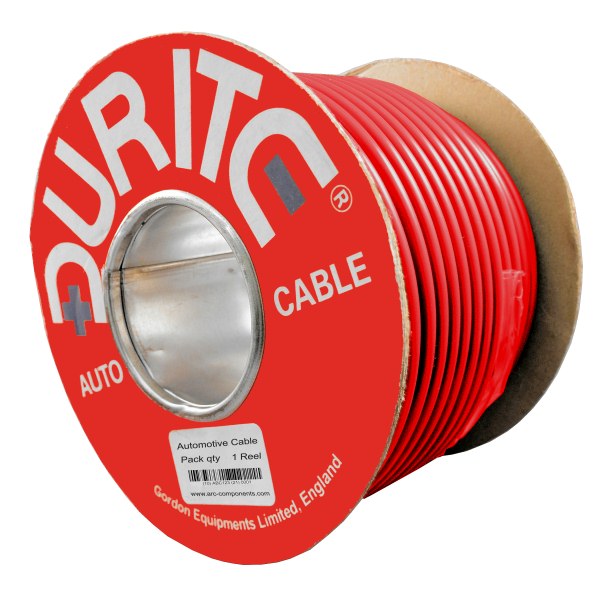

Durite single-core PVC thin wall 70A automotive cable.

10.00mm² (7AWG) Red.
70A single-core automotive cable and vehicle wiring.
80 strands 0.40mm.
Outside diameter: 6.0mm.
To ISO 6722-1:2011.
Roll length 30m.

About the 0-940-05 10.00mm² Red Thin Wall Electric Cable

Arc Components Limited presents the 0-940-05 Durite 70A Red automotive "Thin Wall" cable, which is ideal for your vehicle battery connections close to the battery source like starter motors, alternators and additional electrical equipment with a high-load requirement.
This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 30m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 10mm² and features 80 strands of 0.40mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 6mm. It meets all necessary standards for domestic and commercial vehicles' electrical equipment wiring, including ISO6722/4, reduces the weight and volume of vehicle cable looms and has good overall resistance to petrol, diesel and lubricating oils. It is suitable for high-amperage heavy current loads to a maximum load of 70 Amps continuous.

Used as a Positive (+) conductor on auto electrical equipment and wiring looms.

Specifications

Type

Single-core thin wall cable

Current Rating

70 Amps

Insulation Colour

Red

Wire

80/0.40mm copper

Cross-section

10.0mmï¿½ (7 AWG)

Voltage

60 Volts DC Max.

Resistance

1.82mΩ/m at 20℃

Insulation

Hard-grade PVC offers good resistance to abrasion and cut-through.

Overall Diameter

6.0mm

Length of Cable

30 Metres

Temperature

Minus 40 to +105℃ (120℃ intermittent)

Approvals

ISO6722-1:2011

Weight

3.2Kg
