0-936-03 30m x 4.50mm² Brown 42A Single-core Thin Wall Auto Electrical Cable

£37.11 Excl. VAT

RRP ~~£43.48~~ Excl. VAT

(£44.53 Inc. VAT)

Initial Savings

£6.37

Earn 37 Loyalty Points

Available

Model

0-936-03

Bar Code

5056119132212

Part Number

0-936-03

Brand

Durite

Colour

Brown

Voltage

12V/24V/36V/48V DC

Amperage

42A

Material

Copper/PVC

Intrastat HS Code 8544499390

Ship Weight

1.49 kg

Durite 42 Amps single-core Brown PVC thin wall automotive cable.

4.50mm² (11AWG) Brown.
42A single-core automotive cable and vehicle wiring.

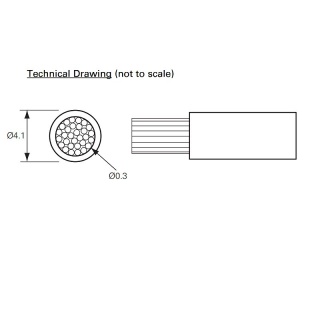

65 copper strands at 0.30mm.
Outside diameter: 4.1mm.
To ISO 6722-1:2011.
Roll length 30m.

About the 0-936-03 4.50mm² Black Thin Wall Electric Cable

Arc Components Limited presents the 0-936-03 Durite 42A Brown automotive "Thin Wall" cable, which is ideal for your vehicle's medium-duty connections close to the battery source and additional electrical equipment with a medium load requirement.
This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 30m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 6mm² and features 65 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 4.1mm. It meets all necessary standards for domestic and commercial vehicles' electrical equipment wiring, including 6722-1:2011, reduces the weight and volume of vehicle cable looms and has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 42 Amps.

Used as a conductor on auto electrical equipment and wiring looms.

Specifications

Type

Single-core thin wall cable

Current Rating

42 Amps

Insulation Colour

Brown

Wire

65/0.30mm copper

Cross-section

4.5mm² (11 AWG)

Voltage

60 Volts DC Max.

Resistance

4.06mΩ/m at 20℃

Insulation

Hard-grade PVC offers good resistance to abrasion and cut-through.

Overall Diameter

4.1mm

Length of Cable

30 Metres

Temperature

Minus 40 to +105℃ (120℃ intermittent)

Approvals

ISO6722-1:2011

Weight

1.49Kg
