0-933-03 100m x 2.00mm² Brown 25A Auto Single-core Cable

£53.08 Excl. VAT

RRP ~~£62.18~~ Excl. VAT

(£63.70 Inc. VAT)

Initial Savings

£9.10

Earn 53 Loyalty Points

Available

Model

0-933-03

Bar Code

5056119131987

Part Number

0-933-03

Brand

Durite

Colour

Brown

Voltage

12V/24V/36V/48V DC

Amperage

25A

Material

Copper/PVC

Intrastat HS Code 8544499390

Ship Weight

2.28 kg

Durite Brown 25 Amps 2mm² single-core thin wall PVC sheathed auto electric cable.

2.00mm² (14AWG) Brown.
25A single-core automotive cable and vehicle wiring.
28 copper strands at 0.30mm.
Outside diameter: 2.8mm.
Manufactured to ISO 06722/4.
Roll length: 100m.

About the 0-933-03 2.00mm² Brown Thin Wall Electric Cable

Arc Components Limited presents the 0-933-03, Durite's low to medium-duty 25A Brown automotive "Thin Wall" cable, ideal for your vehicle's connection to electrical equipment with a low/medium load requirement.
This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 100m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 2.0mm² (14 AWG) and features 28 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 2.8mm. It meets all necessary standards for domestic and commercial vehicles' electrical equipment wiring, including ISO6722/4, reduces the weight and volume of vehicle cable looms and has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 25 Amps.

Used as a conductor on auto electrical equipment and wiring looms.

Specifications

Type

Single-core thin wall cable

Current Rating

25 Amps

Insulation Colour

Brown

Wire

28/0.30mm copper

Cross-section

2.0mm² (14 AWG)

Voltage

60 Volts DC Max.

Resistance

9.4mΩ/m at 20℃

Insulation

Hard grade PVC to BS6746 Type 5.

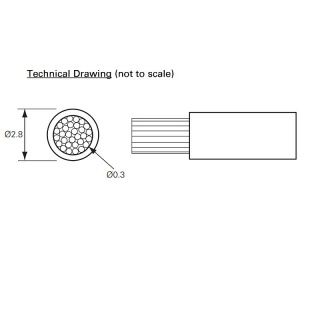

Overall Diameter

2.8mm

Length of Cable

100 Metres

Temperature

Minus 40 to +105℃ (120℃ intermittent)

Approvals

ISO6722/4

Weight

2.28Kg
