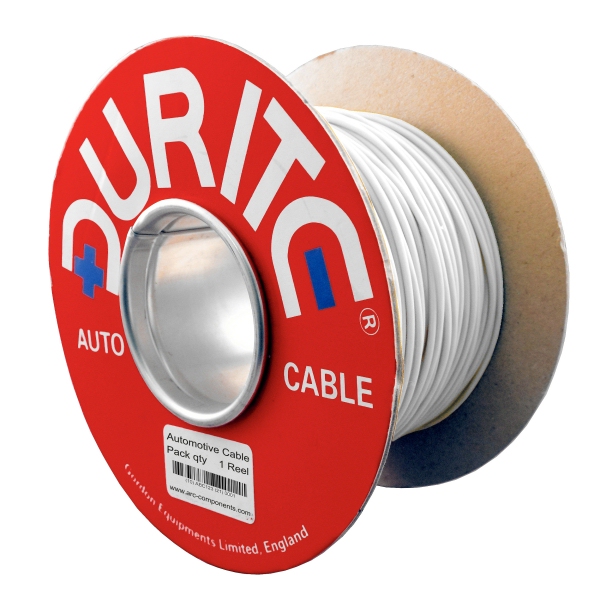

0-930-07 100m x 1.50mm² White 21A Single-core Thin Wall Auto Electric Cable

£39.61 Excl. VAT

RRP ~~£46.40~~ Excl. VAT

(£47.53 Inc. VAT)

Initial Savings

£6.79

Earn 39 Loyalty Points

Available

Model

0-930-07

Bar Code

5056119131321

Part Number

0-930-07

Brand

Durite

Colour

White

Voltage

12V/24V/36V/48V DC

Amperage

21A

Material

Copper/PVC

Intrastat HS Code 8544499390

Ship Weight

1.65 kg

Durite White 21 Amps 1.5mm² single-core thin wall PVC sheathed auto electric cable.

1.50mm² (15AWG) White.
21A single-core automotive cable and vehicle wiring.
21 copper strands at 0.30mm.
Outside diameter: 2.4mm.
Manufactured to ISO 6722-1:2011.
Roll length: 100m.

About the 0-930-07 1.50mm² White Thin Wall Electric Cable

Arc Components Limited presents the 0-930-07, Durite's light-duty 21A White automotive "Thin Wall" cable, ideal for your vehicle's connection to electrical equipment with a low/light load requirement.
This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 100m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 1.5mm² (15 AWG) and features 21 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 2.4mm. It meets all necessary standards for domestic and commercial vehicles' electrical equipment wiring, including ISO6722-1:2011, reduces the weight and volume of vehicle cable looms and has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 21 Amps.

Used as a conductor on auto electrical equipment and wiring looms.

Specifications

Type

Single-core thin wall cable

Current Rating

21 Amps

Insulation Colour

White

Wire

21/0.30mm copper

Cross-section

1.5mm² (15 AWG)

Voltage

60 Volts DC Max.

Resistance

12.7mΩ/m at 20℃

Insulation

Hard-grade PVC offers good resistance to abrasion and cut-through.

Overall Diameter

2.4mm

Length of Cable

100 Metres

Temperature

Minus 40 to +105℃ (120℃ intermittent)

Approvals

ISO6722-1:2011

Weight

1.65Kg
