0-351-06 4 Position Off-Ignition-Pre Heat-Heat Start Key Switch

0-351-06 4 Position Off-Ignition-Pre Heat-Heat Start Key Switch
0-351-06 4 Position Off-Ignition-Pre Heat-Heat Start Key Switch
0-351-06 4 Position Off-Ignition-Pre Heat-Heat Start Key Switch
0-351-06 4 Position Off-Ignition-Pre Heat-Heat Start Key Switch
£14.46 Excl. VAT
RRP £16.94 Excl. VAT
(£17.35 Inc. VAT)
Initial Savings
£2.48
Earn 14 Loyalty Points

Available
Model
0-351-06
Bar Code
5056119109115
Part Number
0-351-06
Brand
Durite
Colour
Metallic
Voltage
12V/24V DC
Material
Plastic/Metal/Brass
 Intrastat HS Code  8536501590
Ship Weight
149 g

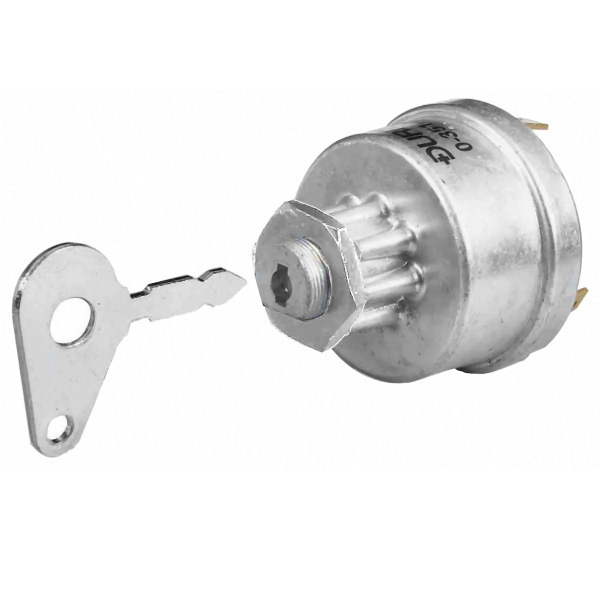

 Durite 0-351-06, 12 or 24 Volts DC 4 position Lucas style automotive key switch.

  • Voltage: 12-24VDC.
  • Off, ignition, pre-heat and heat start ignition switch (Off, then clicks into 1st position, then clicks into 2nd position which spring returns to 1st position).
  • Requires 16mm diameter panel hole.
  • Supplied with 2 keys.
  • Spare or replacement key part number: 0-351-10.
  • 6 terminals: 1 x 9.5mm, 5 x 6.3mm.
  • Pack Quantity: 1 switch and 2 common keys

Replacement Guide

  • Lucas: 34228, 35670, 54033922.

Specifications

Type
Vehicle ignition switch
Voltage
12 to 24 Volts DC
Positions
4 (Off, ignition, pre-heat and heat start)
Terminals
5 x 6.3mm, 1 x 9.5mm
Panel Depth
3mm Maximum
Key Combination
Common only
Nett Weight
190g
