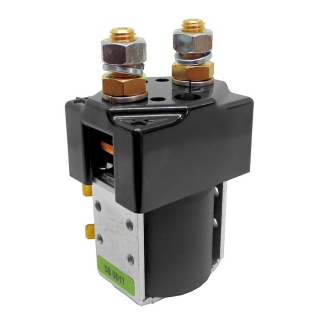

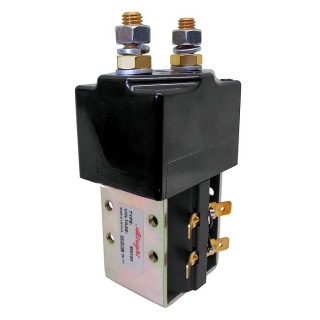

SW80B-10 Albright Single-acting Solenoid Contactor 48V Continuous

£42.54 Excl. VAT

(£51.05 Inc. VAT)

Earn 42 Loyalty Points

2 in stock

Model

SW80B-10

Bar Code

DNA

Part Number

SW80B-10

Brand

Albright

Colour

Black

Voltage

48V DC

Amperage

100A

Material

Copper/Silver/Bakelite

Coil type

Continuous

Intrastat HS Code 8536490000

Ship Weight

400 g

Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of approximately 8 to 10 weeks despatch.

Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
Request "Ship all available" in the order comments section if you order more units than are available.

Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

Albright International SW80B-10, 48VDC 100 Amps single-acting (SPST) solenoid contactor, continuous.

The SW80 series of contactors has been designed for direct current loads, particularly motors used on small electric vehicles such as light industrial trucks, powered invalid cars, etc. They have double-breaking contacts with Silver-alloy contact tips, which are weld-resistant, hardwearing and have excellent conductivity.
They are economical in price and compare favourably with sealed automotive-style solenoid switches, which cannot be serviced or inspected for contact wear.
Repair contact kit part number: 2070-57.
Auxiliary switch kit part number: 2070-124.

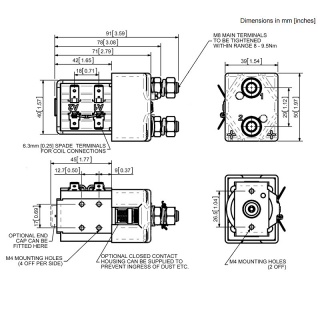

Dimensions

Height, including terminals and coil base cap: 94mm.
Coil width: 41mm.
Cap width: 50.5mm.
Cap depth: 39mm.

Magnetic Blowouts

These contactors are double break configurations and fitted with magnetic blowouts (denoted by the 'B' suffix in the SW80 range) across both contact gaps. These enable high currents to be ruptured very quickly so that arcing time is reduced to a minimum. The fitting of blowouts makes the contacts polarity sensitive, and the Positive markings on the top cover of the contactor must be observed.

About Continuous (CO.) SW80 Solenoids

Continuous contactors, by design, are predominantly used for drive functions on vehicles; they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

The SW80 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via M4 tapped holes or steel mounting brackets (supplied as separate items). Mounting can be horizontal or vertical. When vertical, the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).

Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type

NO - SP - ST

Voltage

48V D.C.

Coil Type

Continuous

Amps

100 Amps

Coil Resistance (Ohms)

212

Pull In Voltage (V)

29.0 Maximum

Drop Out Voltage (V)

12.0 Maximum

Coil Power Dissipation (W)

10.87

Typical Pull-In Time

20ms

Typical Voltage Drop Per Pole
Across New Contacts At 100A

< 40mV

Operating Ambient Temperature

-40 to +60℃

Guideline Weight

400g

Application

Interrupted

Uninterrupted

Thermal Current Rating

100A

125A

Intermittent Current Rating

30% Duty

185A

230A

40% Duty

160A

200A

50% Duty

140A

175A

60% Duty

130A

160A

70% Duty

120A

150A
