SW80-1781L Albright Single-acting Solenoid Contactor 24V Intermittent

£39.42 Excl. VAT

(£47.30 Inc. VAT)

Earn 39 Loyalty Points

Pre-order
Despatch: 8 to 10 Weeks

Model

SW80-1781L

Bar Code

DNA

Part Number

SW80-1781L

Brand

Albright

Colour

Black

Voltage

24V DC

Amperage

100A

Material

Copper/Silver/Bakelite

Coil type

Intermittent

Intrastat HS Code 8536490000

Ship Weight

350 g

Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of approximately 8 to 10 weeks despatch.

Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
Request "Ship all available" in the order comments section if you order more units than are available.

Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

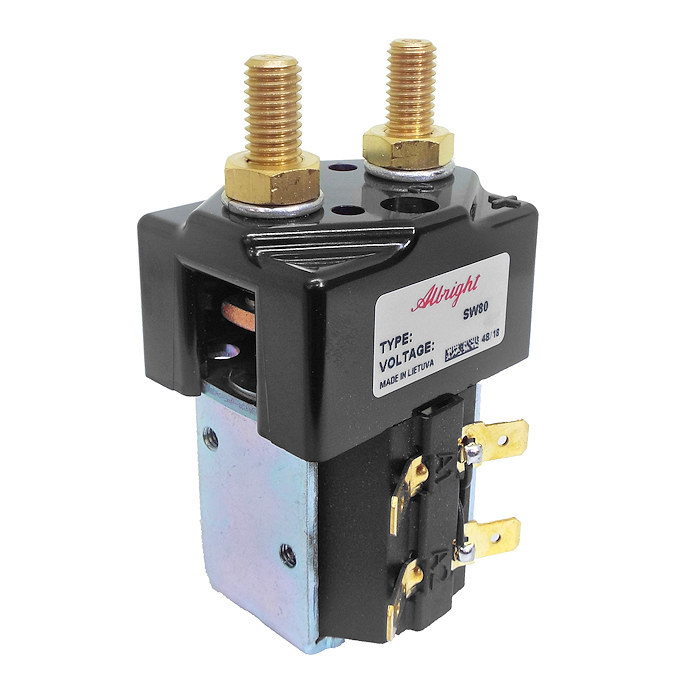

Albright SW80-1781L single-acting solenoid contactor, 24V, intermittent with large contact tips.

The SW80 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered invalid cars, etc., they have double-breaking contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
They are economical in price and compare favourably with sealed automotive style solenoid switches which cannot be serviced or inspected for contact wear.
Repair contact kit part number: 2070-194.
Auxiliary switch kit part number: 2070-124.
Large contact tips.
No top hardware.
Armature cap fitted.

Dimensions

Height including terminals and coil base cap: 94mm.
Coil width: 41mm.
Cap width: 50.5mm.
Cap depth: 39mm.

About Intermittent (Int.) SW80 Solenoids

Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

The SW80 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via M4 tapped holes or by steel mounting brackets (supplied as separate items). Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).

Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type	SPST NO
Voltage	24V D.C.
Coil Type	Intermittent
Amps	100 Amps
Coil Resistance (Ohms)	22
Pull-In Voltage (V)	15.0 Max.
Drop Out Voltage (V)	10.0 Max.
Coil Power Dissipation (W)	26.18
Typical Pull-In Time	20ms
Typical Voltage Drop Per Pole Across New Contacts At 100A	40mV
Operating Ambient Temperature	-40 to +60℃
Weight	350g
Application	Interrupted	Uninterrupted
Thermal Current Rating	100A	125A
Intermittent Current Rating:
30% Duty	185A	230A
40% Duty	160A	200A
50% Duty	140A	175A
60% Duty	130A	160A
70% Duty	120A	150A
