SW63-12 Albright 72V DC 80A Normally Closed Miniature Solenoid - Continuous

SW63-12 Albright 72V DC 80A Normally Closed Miniature Solenoid - Continuous
SW63-12 Albright 72V DC 80A Normally Closed Miniature Solenoid - Continuous
SW63-12 Albright 72V DC 80A Normally Closed Miniature Solenoid - Continuous
SW63-12 Albright 72V DC 80A Normally Closed Miniature Solenoid - Continuous
£20.76 Excl. VAT
(£24.91 Inc. VAT)
Earn 20 Loyalty Points

Pre-order
Despatch: 8 to 10 Weeks
Model
SW63-12
Bar Code
DNA
Part Number
SW63-12
Brand
Albright
Colour
black
Voltage
72V DC
Amperage
80A
Material
Copper/Silver/Bakelite
Coil type
Continuous
 Intrastat HS Code  8536490000
Ship Weight
190 g


 Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of approximately 8 to 10 weeks despatch.

  • Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
  • Request "Ship all available" in the order comments section if you order more units than are available.

 Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

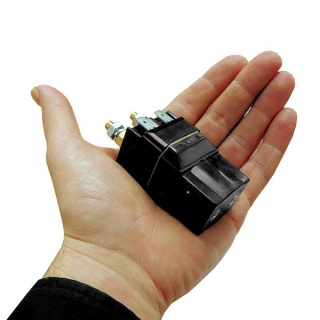

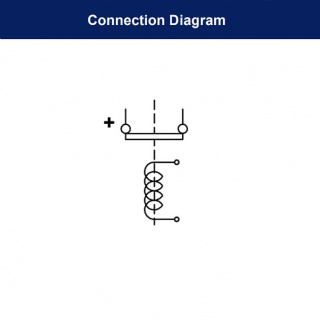

 Albright SW63-12 series Normally Closed (NC) miniature 72VDC single-acting contactor, continuous.

  • Albright SW63 series contactors have been designed for a compact DC contactor application and are used for switching or reversing small traction motors, hydraulic power packs, small wind generators and small electric winch motors, etc.
  • All the contactors are manufactured to a very high standard and employ the best quality materials: phenolic contact housings, Silver-alloy contacts and class H (180℃) winding wire for the coils.
  • Repair kit: not available on this unit.

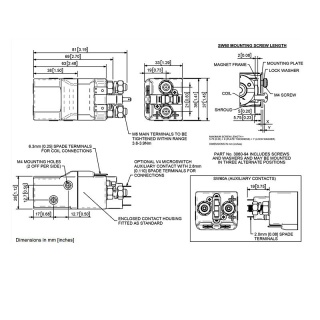

Dimensions

  • Height, including terminals and coil base cap: 81.4mm.
  • Coil width: 35.9mm.
  • Cap width: 35.9mm.
  • Depth: 32.8mm.

Associated Products

  • 3060-94 Standard "U" shaped mounting bracket.
  • 3060-340 Standard "DIN" rail mounting bracket.
  • 3060-382A Curved mounting bracket.
  • 2070-776 "U" shaped mounting bracket with extensions.

About Continuous (CO.) SW63 Solenoids

 Continuous contactors, by design, are predominantly used for drive functions on vehicles; they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

 The SW63 features single pole double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW63 has M6 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or steel mounting brackets (supplied as separate items). Mounting can be on the side or base of the contactor.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type
NC - SP - ST
Voltage
72V D.C.
Coil Type
Continuous
Amps
100A
Coil Resistance (Ohms)
760
Pull In Voltage (V)
48.0 Maximum
Drop Out Voltage (V)
18.0 Maximum
Coil Power Dissipation (W)
6.82
Typical Pull-In Time
15ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A
Less than 40mV
Operating Ambient Temperature
-40 to +60℃ (guide)
Guideline Weight
190g
Application
Uninterrupted
Thermal Current Rating
80A
Intermittent Current Rating

30% Duty
145A
40% Duty
125A
50% Duty
115A
60% Duty
105A
70% Duty
95A
