SW60B-5 Albright 36V DC Single-acting Miniature Solenoid Intermittent 80A

SW60B-5 Albright 36V DC Single-acting Miniature Solenoid Intermittent 80A
SW60B-5 Albright 36V DC Single-acting Miniature Solenoid Intermittent 80A
SW60B-5 Albright 36V DC Single-acting Miniature Solenoid Intermittent 80A
SW60B-5 Albright 36V DC Single-acting Miniature Solenoid Intermittent 80A
£22.87 Excl. VAT
(£27.44 Inc. VAT)
Earn 22 Loyalty Points

Pre-order
Despatch: 8 to 10 Weeks
Model
SW60B-5
Bar Code
DNA
Part Number
SW60B-5
Brand
Albright
Colour
Black
Voltage
36V DC
Amperage
80A
Material
Copper/Silver/Bakelite
Coil type
Intermittent
 Intrastat HS Code  8536490000
Ship Weight
200 g


 Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of approximately 8 to 10 weeks despatch.

  • Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
  • Request "Ship all available" in the order comments section if you order more units than are available.

 Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

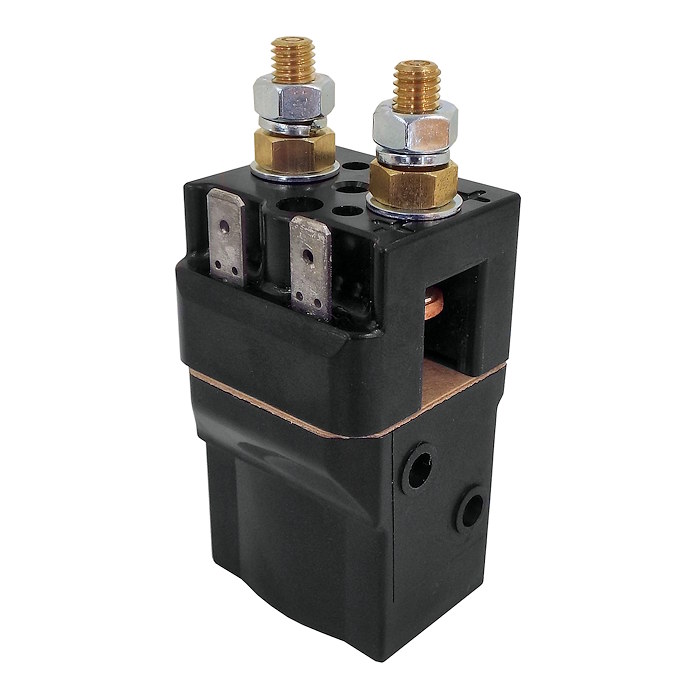

 Albright SW60B-1 series 36VDC miniature single-acting contactor with magnetic blowouts fitted, intermittent.

  • Albright SW60B series contactors have been designed for a compact DC contactor application and are used for switching or reversing small traction motors, hydraulic power packs, small electric winch motors, etc.
  • All the contactors are manufactured to a very high standard and employ the best quality materials: phenolic contact housings, Silver-alloy contacts and class H (180℃) winding wire for the coils.
  • Repair kit: not available on this unit.

Dimensions

  • Height including terminals and coil base cap: 81.4mm.
  • Coil width: 35.9mm.
  • Cap width: 35.9mm.
  • Depth: 32.8mm.

Associated Products

  • 3060-94 Standard "U" shaped mounting bracket.
  • 3060-340 Standard "DIN" rail mounting bracket.
  • 3060-382A Curved mounting bracket.
  • 2070-776 "U" shaped mounting bracket with extensions.

Magnetic Blowouts

 These open case contactors are of double break configuration and are fitted with magnetic blowouts (denoted by the 'B' suffix in the SW60B range) across both contact gaps. These enable high currents to be ruptured very quickly so that arcing time is reduced to a minimum. The fitting of blowouts makes the contacts polarity sensitive and the positive markings on the top cover of the contactor must be observed.

About Intermittent (Int.) SW60B Solenoids

 Intermittent contactors, by design, are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

 The SW60B features single pole double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW60B has M6 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or steel mounting brackets (supplied as separate items). Mounting can be on the side or base of the contactor.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type
NO - SP - ST
Voltage
36V D.C.
Coil Type
Intermittent
Amps
80A
Coil Resistance (Ohms)
100
Pull In Voltage (V)
21.5 Max.
Drop Out Voltage (V)
9.0 Max.
Coil Power Dissipation (W)
12.96
Typical Pull-In Time
15ms
Typical Voltage Drop Per Pole
Across New Contacts At 80A
< 40mV
Operating Ambient Temperature
-40 to +60℃
Guideline Weight
198g
Application
Uninterrupted
Thermal Current Rating
80A
Intermittent Current Rating

30% Duty
145A
40% Duty
125A
50% Duty
115A
60% Duty
105A
70% Duty
95A




Delivery

UK Mainland Postage

Delivery Options Our Free UK Mainland Postage and Packaging Service offers unbeatable value for money. The free UK Standard shipping is automatically applied to your shopping cart page with no additional cost when you reach the £50.00 minimum order value.

 We use Royal Mail Standard or Recorded Delivery for light, low-value orders and we use FedEx, UPS, Parcel Force, and other major courier services for larger and more valuable consignments.


International Consignments

 Our international customers will need to provide the exact Card Holder Address (Invoicee) as the first address for payment processing. Please note that PO Box addresses are not acceptable as delivery addresses by some couriers. All export orders must be placed and paid for online. Proforma Bank Transfer IBAN and SWIFT payment methods are available to create online.
