SW60A-19 Albright 12V DC Single-acting Miniature Solenoid Intermittent 80A

SW60A-19 Albright 12V DC Single-acting Miniature Solenoid Intermittent 80A
SW60A-19 Albright 12V DC Single-acting Miniature Solenoid Intermittent 80A
SW60A-19 Albright 12V DC Single-acting Miniature Solenoid Intermittent 80A
£28.05 Excl. VAT
(£33.66 Inc. VAT)
Earn 28 Loyalty Points

Pre-order
Despatch: 8 to 10 Weeks
Model
SW60A-19
Bar Code
DNA
Part Number
SW60A-19
Brand
Albright
Colour
black
Voltage
12V DC
Amperage
80A
Material
Copper/Silver/Bakelite
Coil type
Intermittent
 Intrastat HS Code  8536490000
Ship Weight
190 g


 Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of approximately 8 to 10 weeks despatch.

  • Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
  • Request "Ship all available" in the order comments section if you order more units than are available.

 Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

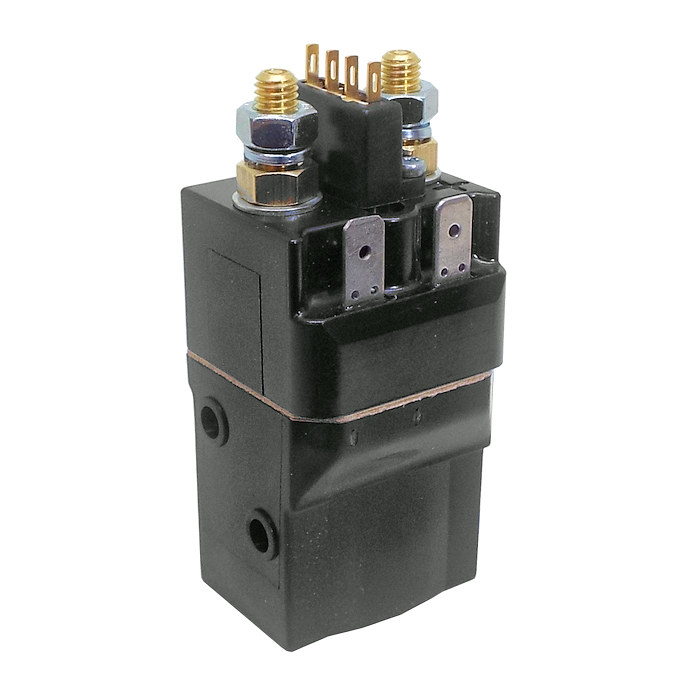

 Albright SW60A-19 series miniature 12VDC single-acting contactor with auxiliary microswitch, intermittent.

  • Albright SW60 series contactors have been designed for a compact DC contactor application and are used for switching or reversing small traction motors, hydraulic power packs, small electric winch motors, etc.
  • All the contactors are manufactured to a very high standard and employ the best quality materials: phenolic contact housings, Silver-alloy contacts and class H (180℃) winding wire for the coils.
  • Repair kit: not available on this unit.
  • With factory fitted 3060-401 auxiliary microswitch.

Dimensions Excluding Microswitch

  • Height including terminals and coil base cap: 81.4mm.
  • Coil width: 35.9mm.
  • Cap width: 35.9mm.
  • Depth: 32.8mm.

Associated Products

  • 3060-94 Standard "U" shaped mounting bracket.
  • 3060-340 Standard "DIN" rail mounting bracket.
  • 3060-382A Curved mounting bracket.
  • 2070-776 "U" shaped mounting bracket with extensions.

About Intermittent (Int.) SW60 Solenoids

 Intermittent contactors, by design, are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

 The SW60 features single pole double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SW60 has M6 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or steel mounting brackets (supplied as separate items). Mounting can be on the side or base of the contactor.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type
NO - SP - ST
Voltage
12V D.C.
Coil Type
Intermittent
Amps
80A
Coil Resistance (Ohms)
11
Pull In Voltage (V)
7.0 Max.
Drop Out Voltage (V)
3.0 Max.
Coil Power Dissipation (W)
13.09
Typical Pull-In Time
15ms
Typical Voltage Drop Per Pole
Across New Contacts At 80A
< 40mV
Operating Ambient Temperature
-40 to +60℃
Guideline Weight
198g
Application
Uninterrupted
Thermal Current Rating
80A
Intermittent Current Rating

30% Duty
145A
40% Duty
125A
50% Duty
115A
60% Duty
105A
70% Duty
95A
