SW181-1 Albright 12V Single-pole Double-throw Solenoid Contactor - Intermittent

£83.46 Excl. VAT

(£100.15 Inc. VAT)

Earn 83 Loyalty Points

Pre-order
Despatch: 8 to 10 Weeks

Model

SW181-1

Bar Code

DNA

Part Number

SW181-1

Brand

Albright

Colour

Black

Voltage

12V DC

Amperage

150A

Material

Copper/Silver/Bakelite

Coil type

Intermittent

Intrastat HS Code 8536490000

Ship Weight

830 g

Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of approximately 8 to 10 weeks despatch.

Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
Request "Ship all available" in the order comments section if you order more units than are available.

Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

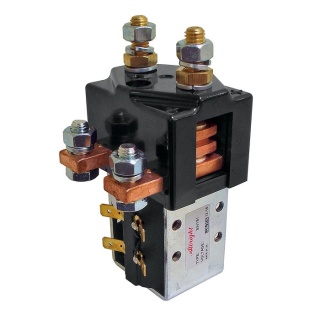

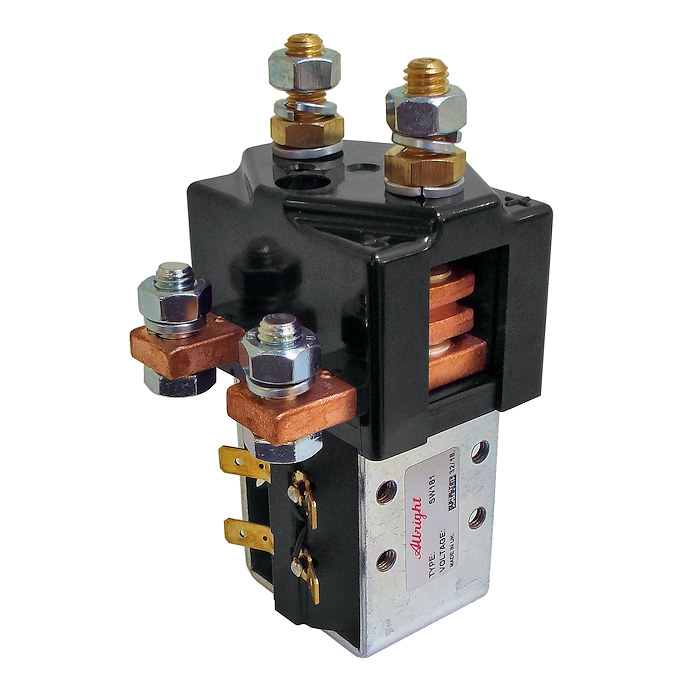

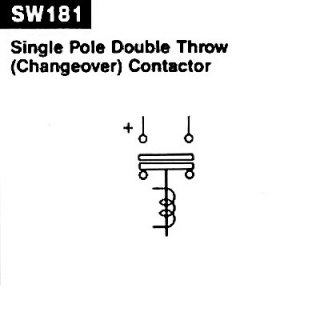

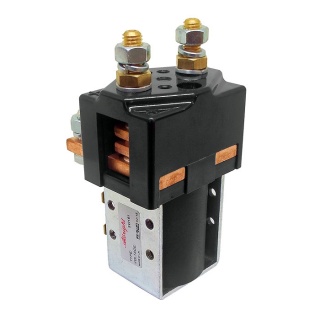

Albright SW181-1 single-pole, double-throw 12VDC solenoid contactor, intermittent.

The SW181-1 has been designed for 12V direct current (DC) loads, including motors as used on electric vehicles such as industrial trucks.
Developed for both interrupted and uninterrupted loads, the SW181 is suitable for switching Resistive, Capacitive and Inductive loads.

Associated Products

2180-43 Albright SW181 Series Contact Kit
2180-43A Albright SW181L Series Contact Kit - Large Tips
2180-796 Auxiliary Micro-Switch for Larger Albright SW Range Contactor Caps
2159-47 Mounting Bracket.
2155-165 Mounting bracket.
2065-167A Mounting bracket.

About Intermittent (INT) SW181-1 Solenoids

Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

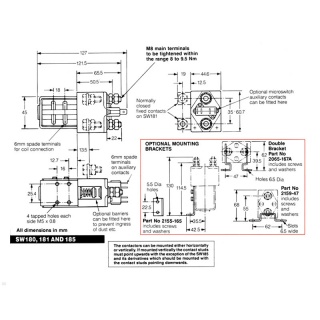

The SW181 has M8 stud main terminals and 6.3mm spade coil connections. It can be mounted via M5 tapped holes or mounting brackets purchased as separate items. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards. Please note Normally Closed contacts are not suited to make and break the load.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).

Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type	SPDT Contactor
Voltage	12V D.C.
Coil Type	Intermittent
Amps	150 Amps
Typical Voltage Drop Per Pole across New Contacts at 150A	Normally Open: 40mV
Coil Resistance (Ohms)	5
Pull In Voltage (V)	7.5 Maximum
Drop Out Voltage (V)	3.0 Maximum
Coil Power Dissipation (W)	28.80
Application	Uninterrupted
Thermal Current Rating	150A
Intermittent Current Rating:
30% Duty	275A
40% Duty	235A
50% Duty	210A
60% Duty	195A
70% Duty	180A
