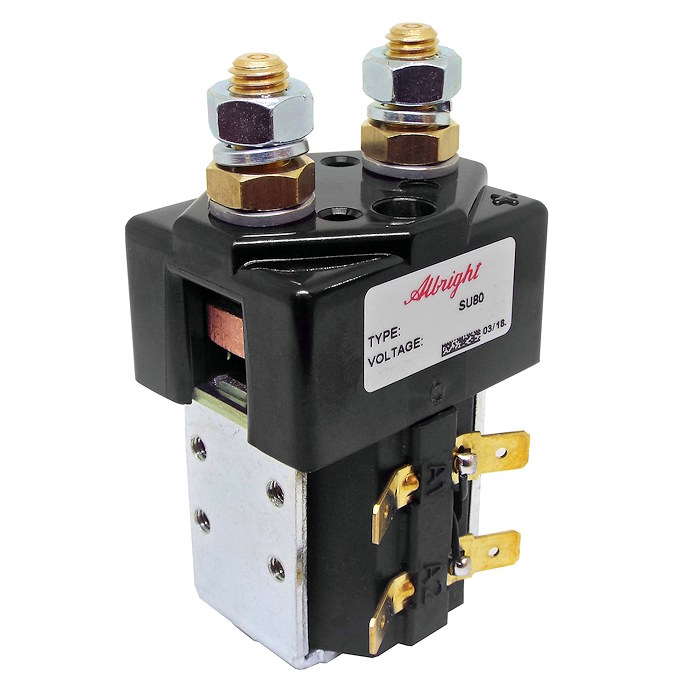

SU80-5018 Albright Single-acting 48V 150A Contactor - Intermittent

£43.52 Excl. VAT

(£52.22 Inc. VAT)

Earn 43 Loyalty Points

2 in stock

Model

SU80-5018

Bar Code

DNA

Part Number

SU80-5018

Brand

Albright

Colour

Black

Voltage

48V DC

Amperage

150A

Material

Copper/Silver/Bakelite/Steel

Coil type

Intermittent

Intrastat HS Code 8536490000

Ship Weight

410 g

Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of approximately 8 to 10 weeks despatch.

Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
Request "Ship all available" in the order comments section if you order more units than are available.

Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

Albright SU80-5018 single-acting (SPST) 48 Volts DC 150 Amps solenoid contactor, intermittent.

The SU80 series of contactors has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered invalid cars, etc., they have double-breaking contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
They are economical in price and compare favourably with sealed automotive style solenoid switches which cannot be serviced or inspected for contact wear.
Auxiliary switch kit part number: 2070-124.

Dimensions

Height including terminals and coil base cap: 91mm.
Coil width: 40mm.
Cap width: 50mm.
Cap depth: 39mm.

About Intermittent (Int.) SU80 Solenoids

Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

The SU80 is an up-rated version of the SW80 Contactor designed for Interrupted and Uninterrupted loads. The SU80 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via M4 tapped holes or by steel mounting brackets (supplied as separate items). Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).

Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type	SPST NO
Voltage	48V D.C.
Coil Type	Intermittent
Amps	150 Amps
Coil Resistance (Ohms)	120
Pull-In Voltage (V)	29.00 Maximum
Drop Out Voltage (V)	12.0 Maximum
Coil Power Dissipation (W)	19.20
Typical Pull-In Time	20ms
Typical Voltage Drop Per Pole Across New Contacts At 100A	40mV
Operating Ambient Temperature	-40 to +60℃
Weight	350g
Application	Interrupted	Uninterrupted
Thermal Current Rating	150A	200A
Intermittent Current Rating:
30% Duty	275A	365A
40% Duty	235A	315A
50% Duty	210A	280A
60% Duty	190A	260A
70% Duty	180A	240A
