SU60-2003 Albright 12V DC Single-acting Miniature Solenoid Intermittent 100A

£23.42 Excl. VAT

(£28.10 Inc. VAT)

Earn 23 Loyalty Points

2 in stock

Model

SU60-2003

Bar Code

DNA

Part Number

SU60-2003

Brand

Albright

Colour

black

Voltage

12V DC

Amperage

100A

Material

Copper/Silver/Bakelite

Coil type

Intermittent

Intrastat HS Code 8536490000

Ship Weight

230 g

Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of approximately 8 to 10 weeks despatch.

Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
Request "Ship all available" in the order comments section if you order more units than are available.

Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

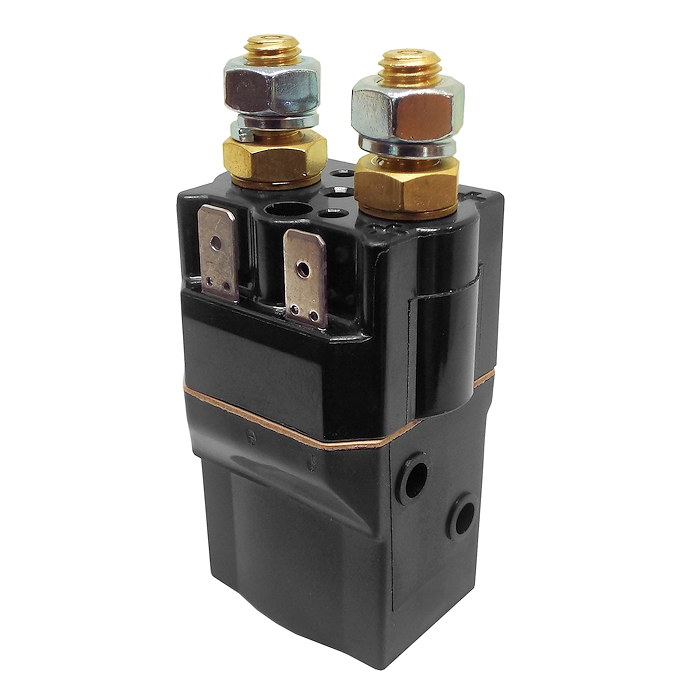

Albright SU60-2003 series miniature 12 Volts DC single-acting contactor, intermittent.

Albright SU60 series contactors have been designed for a compact DC contactor application and are used for switching or reversing small traction motors, hydraulic power packs, small electric winch motors, etc.
All the contactors are manufactured to a very high standard and employ the best quality materials: phenolic contact housings, Silver-alloy contacts and class H (180℃) winding wire for the coils.
Repair kit: not available on this unit.

Dimensions

Height including terminals and coil base cap: 81.4mm.
Coil width: 35.9mm.
Cap width: 35.9mm.
Depth: 32.8mm.

Associated Products

3060-94 Standard "U" shaped mounting bracket.
3060-340 Standard "DIN" rail mounting bracket.
3060-382A Curved mounting bracket.
2070-776 "U" shaped mounting bracket with extensions.

About Intermittent (Int.) SU60 Solenoids

Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

The SU60 features single pole double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. The SU60 has M8 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or steel mounting brackets (supplied as separate items). Mounting can be on the side or base of the contactor.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).

Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type

NO - SP - ST

Voltage

12V D.C.

Coil Type

Intermittent

Amps

100A

Coil Resistance (Ohms)

Pull In Voltage (V)

7.0 Maximum

Drop Out Voltage (V)

3.5 Maximum

Coil Power Dissipation (W)

13.09

Typical Pull-In Time

15ms

Typical Voltage Drop Per Pole
Across New Contacts At 100A

Less than 50mV

Operating Ambient Temperature

-40 to +60℃ (guide)

Guideline Weight

217g

Application

Uninterrupted

Thermal Current Rating

100A

Intermittent Current Rating

30% Duty

180A

40% Duty

160A

50% Duty

140A

60% Duty

130A

70% Duty

120A
