RU280-5016 Albright Single-acting 80V 350A Contactor - Continuous

RU280-5016 Albright Single-acting 80V 350A Contactor - Continuous
RU280-5016 Albright Single-acting 80V 350A Contactor - Continuous
RU280-5016 Albright Single-acting 80V 350A Contactor - Continuous
£73.87 Excl. VAT
(£88.64 Inc. VAT)
Earn 73 Loyalty Points

Pre-order
Despatch: 8 to 10 Weeks
Model
RU280-5016
Bar Code
DNA
Part Number
RU280-5016
Brand
Albright
Colour
Black
Voltage
80V DC
Amperage
350A
Material
Copper/Silver/Bakelite/Steel
Coil type
Continuous
Ship Weight
760 g


 Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of approximately 8 to 10 weeks despatch.

  • Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
  • Request "Ship all available" in the order comments section if you order more units than are available.

 Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

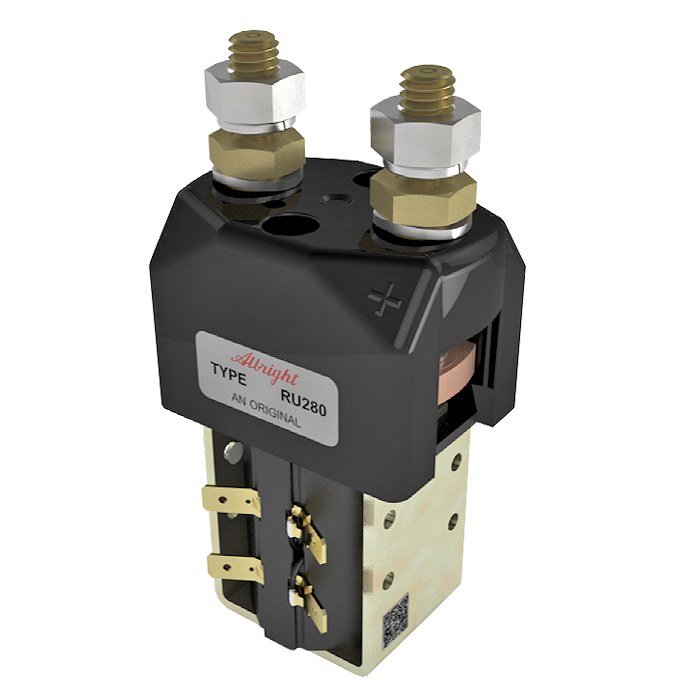

 Albright RU280-5016 single-acting 80Vdc 350 Amps solenoid contactor, continuous.

  • The Reduced Silver series are suitable for applications where infrequent switching is specified. In such applications the degradation of the tip is minimal and therefore a higher volume of silver is unnecessary. Developed for Uninterrupted current applications the RU280 is typically used in line contactors or Power Distribution Systems.
  • Contacts repair kit part number: 2182-919
  • Auxiliary switch kit part number: 2155-352.

Dimensions

  • Height including terminals and coil base cap: 132mm.
  • Coil width: 45mm.
  • Cap width: 67mm.
  • Cap depth: 47mm.

About Continuous (CO.) RU280 Solenoids

 Continuous contactors by design are predominantly used for drive functions on vehicles, they make and break slower than intermittent solenoids and are recommended for prolonged contact periods.

 The contactors have double-breaking main contacts with Silver-alloy tips, which are weld resistant, hardwearing and have excellent conductivity. They are easy to install, with M5 tapped holes in the switch frame together with a range of mounting brackets. Mounting can be vertical or horizontal, when vertical the M10 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).
Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type SPST NO
Voltage 80V D.C.
Coil Type Continuous
Amps 350 Amps
Coil Resistance (Ohms) 427
Pull-In Voltage (V) 52.0 Maximum
Drop Out Voltage (V) 20.0 Maximum
Coil Power Dissipation (W) 14.99
Typical Pull-In Time 30ms
Typical Voltage Drop Per Pole
Across New Contacts At 100A		 40mV
Operating Ambient Temperature -40 to +60℃
Weight 755g
Application Uninterrupted
Thermal Current Rating 350A
Intermittent Current Rating:
30% Duty 640A
40% Duty 555A
50% Duty 495A
60% Duty 450A
70% Duty 420A
