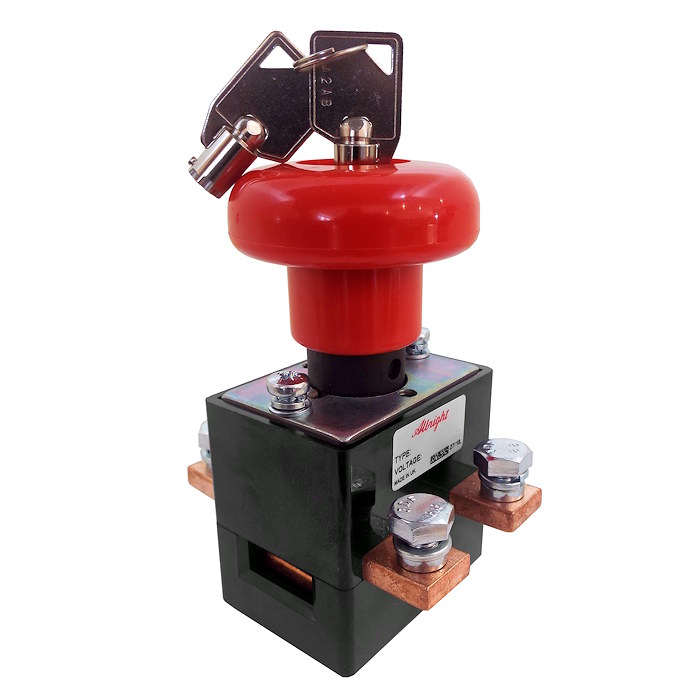

ED252L-1 Albright Heavy-duty Emergency Stop Switch With Key 250A 96V Maximum

£81.75 Excl. VAT

(£98.10 Inc. VAT)

Earn 81 Loyalty Points

No stock

Model

ED252L-1

Bar Code

DNA

Part Number

ED252L-1

Brand

Albright

Colour

Black/Red

Voltage

12V to 96V DC

Amperage

250A

Material

Copper/Silver/Bakelite

Intrastat HS Code 8536490000

Ship Weight

580 g

Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of approximately 8 to 10 weeks despatch.

Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
Request "Ship all available" in the order comments section if you order more units than are available.

Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

Albright heavy-duty 96 Volts dc maximum battery disconnect switch with key.

Rated: 250A, 96VDC maximum.
Double pole, single throw.
Two M5 fixing screws at 48mm centres.
Four M8 hex bolts for battery cable fixing.
They are typically used on 12V, 24V, 48V and 72V DC electric vehicle systems.

About The ED252L Emergency Stop Switch

The Albright emergency stop switchgear is a world leader in the electric vehicle market due to its hardwearing and ease of inspection configuration.

The ED252 range of switches has been designed to provide a rapid means of disconnecting batteries or other power supplies in the event of serious electrical faults. Whilst the switches are primarily intended for battery-powered vehicles; they are also suitable for static power systems. All types are capable of safely rupturing full-load battery currents in the event of an emergency.

The ED252 is a manually operated device with an over-centre spring mechanism that provides a snap action for both the opening and closing of the main contacts. The ED252 is easy to install (see drilling details) and is secured with supplied M5 Posidrive mounting screws.

This lockable version features a key, which is necessary for the knob to be moved from the “Off” position to the “On” position. Once in the “On” position, the key can be removed. Thereafter, the knob may be depressed to the “Off” position, where it will automatically lock and remain locked until the key is used again to unlock it.

Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Application	Uninterrupted
Device Type	DPST Emergency Stop Switch with Key
Thermal Current Rating (Ith)	250 Amps
Intermittent Current Rating	30% Duty 455A 40% Duty 395A 50% Duty 355A 60% Duty 325A 70% Duty 300A
Overload Currents that can be Ruptured	1500A at 96V D.C.
Maximum Recommended Contact Voltage	96V D.C.
Typical Voltage Drop Per Pole Across New Contacts At 100A	40mV
Operating Ambient Temperature	-40 to +60℃
Weight	570g
