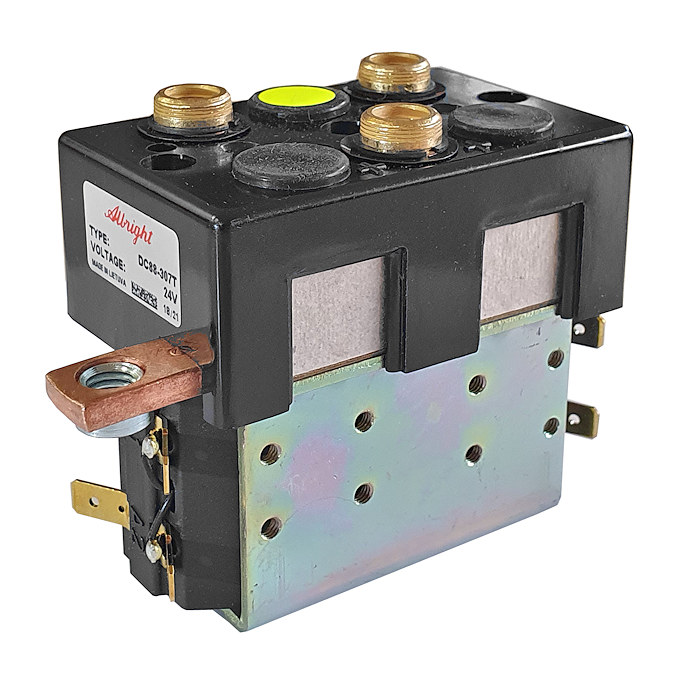

DC88-307T Albright 24V DC Motor-reversing Solenoid Contactor Intermittent

£91.21 Excl. VAT

(£109.45 Inc. VAT)

Earn 91 Loyalty Points

Pre-order
Despatch: 8 to 10 Weeks

Model

DC88-307T

Bar Code

DNA

Part Number

DC88-307T

Brand

Albright

Colour

Black

Voltage

24V DC

Amperage

100A

Material

Copper/Silver/Bakelite

Coil type

Intermittent

Intrastat HS Code 8536490000

Ship Weight

1.04 kg

Pre-orders and back-ordering are available for all Albright brand out-of-stock items, with a current lead time of approximately 8 to 10 weeks despatch.

Ordering more Albright brand products than is shown in stock will put your order into a backorder process.
Request "Ship all available" in the order comments section if you order more units than are available.

Telephone: +44 (0) 1924 823119 or Email us to discuss further requirements.

Albright 24 Volts DC motor reversing solenoid contactor with textured tips, intermittent.

The DC88-307T contactor has been designed for direct current loads, particularly motors as used on small electric vehicles such as light industrial trucks, powered invalid cars, etc.
They have double-breaking main contacts with Silver-alloy contact tips, which are weld resistant, hardwearing and have excellent conductivity.
They are economical in price and compare favourably with sealed automotive style solenoid switches which cannot be serviced or inspected for contact wear.
The DC88 is a monoblock construction, resulting in a neat compact design that is compatible with modern electronic control systems.
Textured tip version contactor.
No bracket fitted, tapped hole magnetic frame.
Dust shields fitted.
No hardware kit.

Associated Products

2070-41 Albright SW88 DC88 Solenoid Mounting Bracket
2072-447 Pair of Albright DC88 Solenoid Mounting Brackets

About The DC88-307T Motor Reversing Solenoid

Intermittent contactors by design are predominantly used for hydraulic functions on vehicles, they make and break quicker than continuous solenoids and are not recommended for prolonged contact periods.

The main contact circuit, designed for motor reversing, has a built-in failsafe, so that if both coils are energised simultaneously the contact arrangement is an open circuit. Coil connections are by means of 6.3mm spades and mounting is via M4 screws on a panel fixture or using an additional bracket (e.g. part number: 2070-41) and can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

Interrupted Current: The opening and closing on load with frequent switching (resulting in increased contact resistance).

Uninterrupted Current: No or infrequent load switching requirements (maintains a lower contact resistance).

Specifications

Device Type	DC88 Monoblock SPDT NO
Voltage	24V D.C.
Coil Type	Intermittent
Amps	100A
Coil Resistance (Ohms)	29
Pull-In Voltage (V)	15.5 Maximum
Drop Out Voltage (V)	6.0 Maximum
Coil Power Dissipation (W)	19.86
Typical Pull-In Time	20ms
Typical Voltage Drop Per Pole Across New Contacts At 100A	Normally Open: Less than 40mV Normally Closed: Less than 50mV
Operating Ambient Temperature	-40 to +60℃
Guideline Weight	1.04kg
Application	Uninterrupted
Thermal Current Rating	100A
Intermittent Current Rating:
30% Duty	185A
40% Duty	160A
50% Duty	140A
60% Duty	130A
70% Duty	120A
