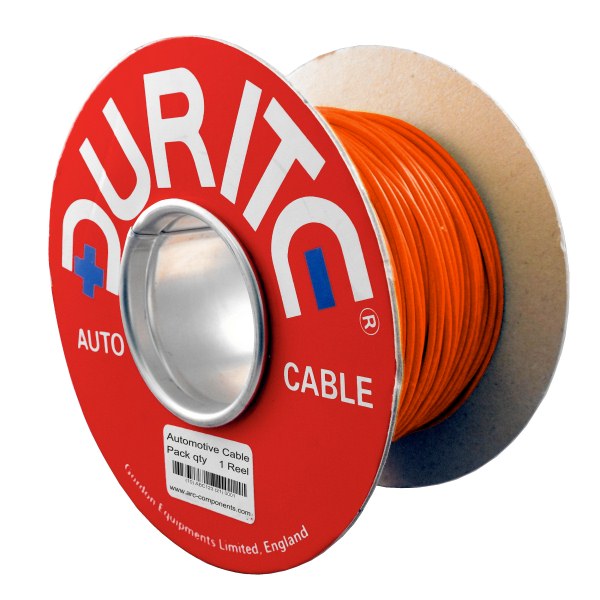

0-942-10 50m x 1.00mm² Orange 8.75A Auto Single-core Cable

£15.11 Excl. VAT

RRP ~~£17.70~~ Excl. VAT

(£18.13 Inc. VAT)

Initial Savings

£2.59

Earn 15 Loyalty Points

Available

Model

0-942-10

Bar Code

5056119132588

Part Number

0-942-10

Brand

Durite

Colour

Orange

Voltage

12V/24V DC

Amperage

8.75A

Material

Copper/PVC

Intrastat HS Code 8544499390

Ship Weight

820 g

Durite 8.75A Orange standard automotive cable for vehicle wiring looms. PVC sheathed and copper-cored electrical wire supplied on cardboard cable reels for van or workshop storage racks and dispensers.

1mm² (17AWG) Orange.
8.75 Amps single-core automotive cable and vehicle wiring.
14 copper strands at 0.30mm.
Outside diameter: 2.7mm.
Manufactured to BS6862-1:1971.
Roll length: 50m.

About the 0-942-10 1.00mm² Orange PVC Electric Cable

Arc Components Limited presents the 0-942-10, Durite's light-duty 8.75A Orange automotive cable, ideal for your vehicle's connection to electrical equipment with a low load requirement.
This high-quality PVC sheathed, copper-cored electrical wire is supplied on a 50m cardboard reel, perfect for storage in your van or workshop ready use wiring racks. It is 1.0mm² (17 AWG) and features 14 strands of 0.30mm separate copper wires bound together in a PVC sleeve, with an outside diameter of 2.7mm. It meets all necessary standards for electrical equipment wiring for domestic and commercial vehicles, including BS6862-1:1971. It has good overall resistance to petrol, diesel and lubricating oils. It is suitable for continuous current loads to a maximum of 8.75 Amps.

The Durite 0-942-10 is commonly used as a conductor wire on low-amperage 12V-24V electrical equipment and wiring looms.

Specifications

Type

Single-core standard automotive wiring

Current Rating

8.75 Amps

Insulation Colour

Orange

Wire

14/0.30mm copper

Cross-section

1.00mm² (17 AWG)

Voltage

For 12 and 24 Volts DC systems (100 Volts DC Max.)

Resistance

18.9mΩ/m at 20℃

Insulation

Hard-grade PVC offers good resistance to abrasion and cut-through.

Overall Diameter

2.7mm

Temperature

Minus 30 to +70 degrees C

Length of Cable

50 Metres

Approvals

BS 6862-1:1971

Weight

0.82Kg
