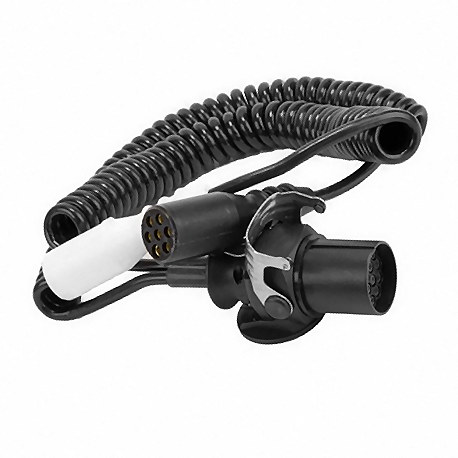

0-777-24 Durite 7 Core Retractable Electric Adaptor Cable 4M - 15-Pin to 7-Pin

0-777-24 Durite 7 Core Retractable Electric Adaptor Cable 4M - 15-Pin to 7-Pin
0-777-24 Durite 7 Core Retractable Electric Adaptor Cable 4M - 15-Pin to 7-Pin
£72.79 Excl. VAT
RRP £80.88 Excl. VAT
(£87.35 Inc. VAT)
Initial Savings
£8.09
Earn 72 Loyalty Points

Available
Model
0-777-24
Bar Code
5056119143508
Part Number
0-777-24
Brand
Durite
Colour
Black/White
Voltage
24V DC
Material
Copper/PVC/Steel
 Intrastat HS Code  8544429090
Ship Weight
2.11 kg


 0-777-24 Durite 7 core retractable electric adaptor cable, 4M maximum working length.

  • 7 core retractable cable.
  • Covered with black thermoplastic polyurethane.
  • 4 metre maximum working length.
  • Fitted with 1 x 15-Pin and 2 x 7 pin plugs (24N and 24S) to ISO 12098.

Associated Products

  • 0-717-23 Durite 3M retractable adaptor cable.

Associated Products

  • 0-717-24 Durite 4M retractable adaptor cable.

24N Connector Wiring Code - ISO 1185

Pin
Terminal Type
Function
Cable Colour
1
Socket
Earth
White
2
Socket
Left-hand Side, Tail and Number Plate
Black
3
Socket
Left-hand Indicator
Yellow
4
Socket
Stop Lamps
Red
5
Socket
Right-hand Indicator
Green
6
Socket
Right-Hand Side, Tail and Number Plate
Brown
7
Socket
Trailer Brake Control to ISO 1185
Blue



15-Pin Connector Wiring Code - (DIN 72570) ISO 11446

Pin
Function
Cable Colour
Cable size
1
Indicator Left
Yellow
1.5mm²
2
Indicator Right
Green
1.5mm²
3
Rear Fog Light
Blue
1.5mm²
4
Common Return for 1-3 and 5-12
White
2.5mm²
5
Left Tail, Side and Number Plate Lighting
Black
1.5mm²
6
Right Tail, Side and Number Plate Lighting
Brown
1.5mm²
7
Stop Lights
Red
1.5mm²
8
Reverse Light
Pink
1.5mm²
9
Power Supply (+ 24 Volts)
Orange
2.5mm²
10
Sensor Brake Pad Wear
Grey
1.5mm²
11
Display for Accumulator Brake
White/Black
1.5mm²
12
Axle Lifting
White/Blue
1.5mm²
13
Common Return Data Cable 14-15
White/Red
2.5mm²
14
Data Transmission CAN H
White/Green
1.5mm²
15
Data Transmission CAN L
White/Brown
1.5mm²
