0-374-15 Pack of 10 32mm Standard Glass Fuses 15A

£2.93 Excl. VAT

RRP ~~£3.26~~ Excl. VAT

(£3.52 Inc. VAT)

Initial Savings

£0.33

Earn 2 Loyalty Points

Available

Model

0-374-15

Bar Code

5056119110050

Part Number

0-374-15

Brand

Durite

Colour

Clear

Voltage

12V/24V DC

Amperage

15A

Material

Glass/Nickel/Brass

Intrastat HS Code 8536109090

Ship Weight

15 g

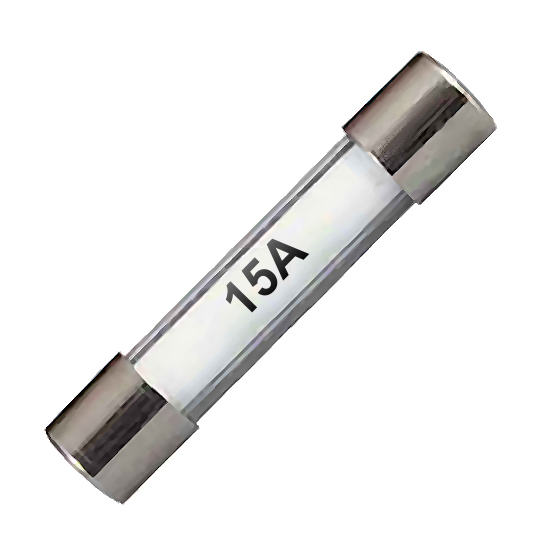

Durite 32mm standard 15 Amps glass fuse for automotive electrical surge protection.

Glass encased fuse element with nickel-plated brass end caps.
Continuous Rating: 15A.
Blow Rating: 30A.
Always check your equipment's manual before replacing fuses to determine which fuses you require.
Pack Quantity: 10 pieces.

Dimensions

Total Length: 32.0mm
Total Diameter: 6.5mm

About The 15A Standard 32mm Glass Fuse

The Durite classic style glass fuse with 6.5mm diameter nickel-plated brass caps are historically used for surge protection, usually found mounted on vehicle PCB's and when used inline on automotive cables and vehicle wiring.

The ratings for 15A continuous use is based on a circuit constant load being always-on, the 30A blow rating is based on the circuit load being intermittent.

Fuse Ratings

Continuous ratings for fuses are based on the fact they should blow at the amperage when the circuit is always-on or plugged in. The blow ratings for fuses are based on the fact that the circuit is intermittent and therefore the fuse is required to heat up before blowing.
