0-325-07 10m Black Expandable Flame Retardant Braided Sleeving 6.4mm ID

0-325-07 10m Black Expandable Flame Retardant Braided Sleeving 6.4mm ID
£11.32 Excl. VAT
RRP £12.86 Excl. VAT
Initial Savings
£1.54
(£13.58 Inc. VAT)
Earn 11 Loyalty Points

Available
Model
0-325-07
Bar Code
5056119107289
Part Number
0-325-07
Brand
Durite
Colour
Black
Material
Polyethylene Terephthalate
Weight
75 g

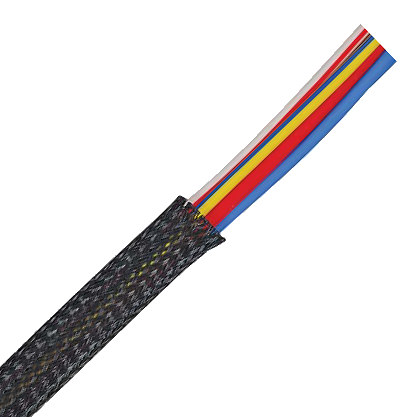

 Durite Black expandable fire retardant braided sleeving.

  • Flame retardant.
  • Colour: Black.
  • PET braid: Polyethylene Terephthalate monofilament yarn.
  • Operating temperature -40 to 125℃.
  • Pack Quantity: 10 Metres, coil

Specifications

Type
Expandable braided sleeving
Material
PET monofilament yarn
Colour
Black
Expansion Ratio
~3:1 (small diameter) to 2:1 (large diameter)
Elongation
20 percent
Operating Temperature
-40˚C to +125 degrees C
Melt Temperature
250 degrees C
Approvals
UL E304566
